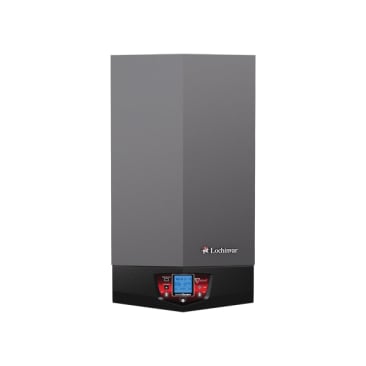

LOCHINVAR WHB110N WLL/MOUNT FIRE TUBE CONDENSING BOILER
MFR Part #: 100302088
SKU #: 1244013
Brand: Lochinvar®
UPC: 400050366673
Lochinvar® KNIGHT® 100302088 Fire Tube Boiler, 95 % AFUE, 110 MBtu/hr BTU, 2.3 gal Capacity, Natural Gas Fuel
15 Year Limited, 5 Year Limited Parts
AHRI Certified | ASME Specified | CSA Certified | ENERGY STAR Certified | LOW Nox Certified
Product Details
Attributes
Features
Resources
Lochinvar® KNIGHT® Fire Tube Boiler, 95 % AFUE, 110 MBtu/hr BTU, 2.3 gal Capacity, Natural Gas Fuel, Chimney/Breeching/Vent Size: 3 in, Wall Mounting, Dimensions: 41-1/4 in H x 18-3/4 in W x 19 in D, Additional Information: 89 MBtu/hr AHRI, 2 in Air Inlet, 1/2 in Suction Line, 1 in Liquid Line
KNIGHT Fire Tube Wall Mount Boiler gives greater installation flexibility with the performance you've come to expect.
AFUE Rating:
95 %
BTU Rating:
110 MBtu/hr
Capacity:
2.3 gal
Chimney/Breeching/Vent Size:
3 in
Dimensions:
41-1/4 in H x 18-3/4 in W x 19 in D
Fuel Type:
Natural Gas
Mounting Type:
Wall
Additional Information:
89 MBtu/hr AHRI, 2 in Air Inlet, 1/2 in Suction Line, 1 in Liquid Line
- 7 Models from 55,000 to 399,000 Btu/hr
- 95% AFUE
- Up to 10:1 Turndown
- ECM Variable Speed Boiler Pump
- Features SMART SYSTEM™ Operating Control and CON-X-US® Remote Connect Capable
- Smart System Digital Operating Control Multi-Color Graphic LCD Display w/Navigation Dial, Soft Keys and Loch-N-Link USB programming
- Three Boiler Setpoint Temperature Inputs Plus Domestic Hot Water Prioritization
- Built-in Cascading Sequencer for up to 8 Boilers, with Cascade Redundancy Multiple Size Boiler Cascade Lead Lag Efficiency Optimization Front End Loading Capability
- Outdoor Reset Control with Outdoor Air Sensor Programmable for Three Reset Temperature Inputs
- Programmable System Efficiency Optimizers SH Night Setback DHW Night Setback Anti-Cycling Outdoor Air Reset Curve Ramp Delay Modulation Factor Control Boost Temperature & Time
- 95% DOE AFUE Efficiency (55-285)
- Modulating Burner with up to 10:1 Turndown Direct Spark Ignition Low NOx Operation
- ASME Stainless Steel Heat Exchanger 30 PSI ASME Relief Valve
- Top and bottom water connections (MNPT, WHB 55-285 Only)
- Vertical & Horizontal Direct Vent PVC, CPVC, Polypropylene or SS Venting up to 100 ft
- Universal Vent Adapter Built-in Combustion Analyzer Port
- SMART SYSTEM™ Control
- Condensate Trap
- ECM Variable Speed Boiler Circulating Pump
- 110V Convenience Outlet
Product Details
Lochinvar® KNIGHT® Fire Tube Boiler, 95 % AFUE, 110 MBtu/hr BTU, 2.3 gal Capacity, Natural Gas Fuel, Chimney/Breeching/Vent Size: 3 in, Wall Mounting, Dimensions: 41-1/4 in H x 18-3/4 in W x 19 in D, Additional Information: 89 MBtu/hr AHRI, 2 in Air Inlet, 1/2 in Suction Line, 1 in Liquid Line
KNIGHT Fire Tube Wall Mount Boiler gives greater installation flexibility with the performance you've come to expect.
Attributes
AFUE Rating: 95 %
BTU Rating: 110 MBtu/hr
Capacity: 2.3 gal
Chimney/Breeching/Vent Size: 3 in
Dimensions: 41-1/4 in H x 18-3/4 in W x 19 in D
Fuel Type: Natural Gas
Mounting Type: Wall
Additional Information: 89 MBtu/hr AHRI, 2 in Air Inlet, 1/2 in Suction Line, 1 in Liquid Line
Features
- 7 Models from 55,000 to 399,000 Btu/hr
- 95% AFUE
- Up to 10:1 Turndown
- ECM Variable Speed Boiler Pump
- Features SMART SYSTEM™ Operating Control and CON-X-US® Remote Connect Capable
- Smart System Digital Operating Control Multi-Color Graphic LCD Display w/Navigation Dial, Soft Keys and Loch-N-Link USB programming
- Three Boiler Setpoint Temperature Inputs Plus Domestic Hot Water Prioritization
- Built-in Cascading Sequencer for up to 8 Boilers, with Cascade Redundancy Multiple Size Boiler Cascade Lead Lag Efficiency Optimization Front End Loading Capability
- Outdoor Reset Control with Outdoor Air Sensor Programmable for Three Reset Temperature Inputs
- Programmable System Efficiency Optimizers SH Night Setback DHW Night Setback Anti-Cycling Outdoor Air Reset Curve Ramp Delay Modulation Factor Control Boost Temperature & Time
- 95% DOE AFUE Efficiency (55-285)
- Modulating Burner with up to 10:1 Turndown Direct Spark Ignition Low NOx Operation
- ASME Stainless Steel Heat Exchanger 30 PSI ASME Relief Valve
- Top and bottom water connections (MNPT, WHB 55-285 Only)
- Vertical & Horizontal Direct Vent PVC, CPVC, Polypropylene or SS Venting up to 100 ft
- Universal Vent Adapter Built-in Combustion Analyzer Port
- SMART SYSTEM™ Control
- Condensate Trap
- ECM Variable Speed Boiler Circulating Pump
- 110V Convenience Outlet
