LOCHINVAR WHB199N Image 2

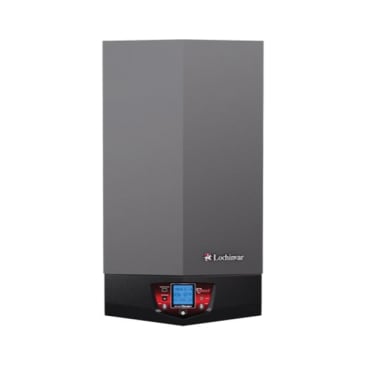

LOCHINVAR WHB199N WLL/MNT KNIGHT 199 BTU CNDSNG BOILER

MFR Part #: WHB199N
SKU #: 1244090
Brand: Lochinvar®
UPC: 400050372247
Lochinvar® KNIGHT™ WHB199N Fire Tube Boiler, 95 % AFUE, 199 mbh BTU, 184 mbh Capacity, 120 V, 1 ph Phase, Gas Fuel
15 Year
AHRI Certified | ASME Specified

Lochinvar® KNIGHT™ Fire Tube Boiler, 120 V, 60 Hz Frequency, 1 ph, 95 % AFUE, 199 mbh BTU, 184 mbh Capacity, 30 psi Pressure, Gas Fuel, Universal Vent, Chimney/Breeching/Vent Size: 3 in, 1/2 in Flue Outlet, Direct Spark Ignition, Net Rating: 160 mbh, Number of Boilers: 8, Wall Mounting, Stainless Steel, Dimensions: 41-1/4 in H x 18-3/4 in W x 19-1/8 in D

KNIGHT™ fire tube wall-mount boiler gives greater installation flexibility with the performance you've come to expect.

Product Details

Lochinvar® KNIGHT™ Fire Tube Boiler, 120 V, 60 Hz Frequency, 1 ph, 95 % AFUE, 199 mbh BTU, 184 mbh Capacity, 30 psi Pressure, Gas Fuel, Universal Vent, Chimney/Breeching/Vent Size: 3 in, 1/2 in Flue Outlet, Direct Spark Ignition, Net Rating: 160 mbh, Number of Boilers: 8, Wall Mounting, Stainless Steel, Dimensions: 41-1/4 in H x 18-3/4 in W x 19-1/8 in D

KNIGHT™ fire tube wall-mount boiler gives greater installation flexibility with the performance you've come to expect.

Attributes

AFUE Rating: 95 %
Amperage Rating: 3.3 A
Area: 15.66 sq-ft
BTU Rating: 199999 Btu/hr, 199 mbh
Burner Type: Modulating
Capacity: 184 mbh, 5 gal
Chimney/Breeching/Vent Size: 3 in
Dimensions: 41-1/4 in H x 18-3/4 in W x 19-1/8 in D
DOE Heating Capacity: 184 mbh
Flue Outlet Size: 1/2 in
Frequency Rating: 60 Hz
Fuel Type: Gas, Natural Gas
Fuse Rating: 4.2 A
Ignition Type: Direct Spark
Material: Stainless Steel
Mounting Type: Wall
Net BTU Rating: 160 MBtu/hr
Net Rating: 160 mbh
Phase: 1 ph
Pressure Rating: 30 psi, 80 psi
Vent Type: Horizontal, Vertical Direct, Universal
Voltage Rating: 120 VAC, 120 V
Additional Information: 3 in Air Inlet, 1/2 in Gas Connection, 1-1/4 in Water Connection
Number of Boilers: 8

Features

  • Up to 10:1 turndown
  • ECM variable speed boiler pump
  • Features SMART SYSTEM™ operating control and CON-X-US® remote connect capable

Resources

Catalog
Specification Sheet
Warranty Information
