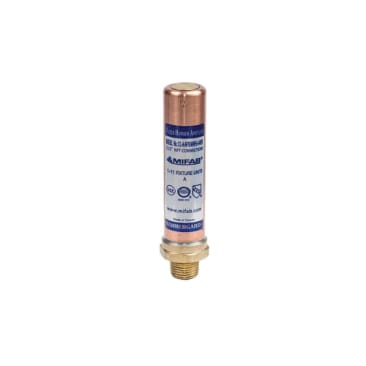

MIFAB CL-B-NPB Image 1

MIFAB CL-B-NPB 3/4IN WATER HAMMER ARRESTOR NO LEAD

MFR Part #: CL-B-NPB
SKU #: 1112773
Brand: MIFAB®
UPC: 779897026942
MIFAB® CL-B-NPB Piston Operated Water Hammer Arrester, 3/4 in Nominal, MNPT End Style, 350 psig Pressure, 12 to 30 Fixture Unit, Import
1 year
Commercial, Institutional and Residential
IAPMO 1010 and ANSI A112.26.4M | ASSE Specified | CSA Certified | FDA Approved | Mechanical Contractors Association of America | PDI Standard | UPC Listed | PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

MIFAB® Water Hammer Arrester, Lead Free Piston Operated, Series: CL Series, 3/4 in Nominal, MNPT, 350 psig, 12 to 30 Fixture Unit Capacity, 250 deg F, Copper Body, 1-1/8 in Dia x 7-1/2 in L, Import

MIFAB® CL series (specify size) piston operated water hammer arrestor with hard drawn seamless "K" copper body, RYTON PPS piston with double O-rings (Parco # 5778-80) and CDA 360 brass M.P.T. connection. Certified to the ASSE 1010-1996 and ANSI A112.26.1M standards. Engineered to limit the system surge pressure up to 1500 psig.

Product Details

MIFAB® Water Hammer Arrester, Lead Free Piston Operated, Series: CL Series, 3/4 in Nominal, MNPT, 350 psig, 12 to 30 Fixture Unit Capacity, 250 deg F, Copper Body, 1-1/8 in Dia x 7-1/2 in L, Import

MIFAB® CL series (specify size) piston operated water hammer arrestor with hard drawn seamless "K" copper body, RYTON PPS piston with double O-rings (Parco # 5778-80) and CDA 360 brass M.P.T. connection. Certified to the ASSE 1010-1996 and ANSI A112.26.1M standards. Engineered to limit the system surge pressure up to 1500 psig.

Attributes

Body Material: Copper
Country Of Origin: South Korea
Dimensions: 1-1/8 in Dia x 7-1/2 in L
Domestic/Import: Import
End Style: MNPT
Fixture Unit Capacity: 12 to 30
Nominal Size: 3/4 in
Pressure Rating: 350 psig
Series: CL Series
Temperature Rating: 250 deg F
Type: Piston Operated

Features

  • Thick walled one piece, hard drawn "K" copper seamless body
  • Unique design eliminates separate end cap connection to ensure maximum integrity of the body and guarantees free movement of the piston for maximum performance
  • Ryton PPS piston with two Parco #5778-80 O-rings and Dow Corning #111 FDA approved silicone lubricant
  • Ribbed piston design reduces secondary shock and flared piston skirt prevents hard particles suspended in the water supply from contacting the O-rings to provide increased product life
  • Large volume air chamber provides better dampening for superior water hammer arrestor performance
  • No access door is required to service MIFAB® water hammer Arresters

Resources

Specification Sheet
Warranty Information
