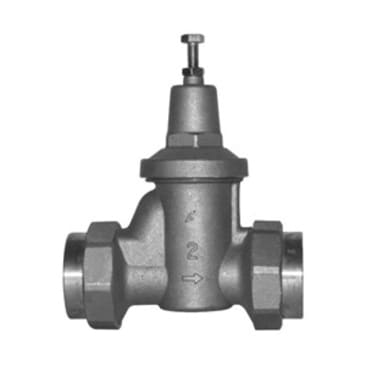

MIFAB PRV2.00-DU-IPS-C-LL Image 1

MIFAB PRV2.00-DU-IPS-C-LL 2 PRV DBL FIP UNION LOW LEAD

MFR Part #: PRV2.00-DU-IPS-C-LL
SKU #: 1218494
Brand: MIFAB®
UPC: 779897210020
MIFAB® BEECO® PRV2.00-DU-IPS-C-LL PRV-C-LL Compact Double Union Pressure Reducing Valve, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Bronze Body, Import
1 Year Limited
ANSI A112.26.2 | ASTM B584 Body | ASSE 1003 | CSA B356 | cUPC Listed | Mechanical Contractors Association of America | IAPMO Listed | PDI® Certified | UPC Listed | PROP65:This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

MIFAB® BEECO® Pressure Reducing Valve, Low Lead Compact Double Union, Series: PRV-C-LL, 2 in Nominal, FNPT, 25 to 75 psi, 33 to 180 deg F, Media: Water, 7.28 in Inlet to Outlet Length, 7.44 in Top to Inlet Center, Bronze Body, Elastomer/Polymer/Thermoplastic Trim, Import

MIFAB 2" PRV DOUBLE UNION,THREADED CONNECTION, LOW LEAD.

Product Details

MIFAB® BEECO® Pressure Reducing Valve, Low Lead Compact Double Union, Series: PRV-C-LL, 2 in Nominal, FNPT, 25 to 75 psi, 33 to 180 deg F, Media: Water, 7.28 in Inlet to Outlet Length, 7.44 in Top to Inlet Center, Bronze Body, Elastomer/Polymer/Thermoplastic Trim, Import

MIFAB 2" PRV DOUBLE UNION,THREADED CONNECTION, LOW LEAD.

Attributes

Body Material: Bronze
Country Of Origin: Taiwan
Domestic/Import: Import
End Style: FNPT
Inlet to Outlet Length: 7.28 in
Media: Water
Nominal Size: 2 in
Pressure Range: 25 to 75 psi
Series: PRV-C-LL
Temperature Rating: 33 to 180 deg F
Top to Inlet Center: 7.44 in
Trim Material: Elastomer/Polymer/Thermoplastic
Type: Compact Double Union

Features

  • Internal bypass for thermal expansion
  • Convenient strainer and seat access
  • In-line serviceability
  • Corrosion resistant body and cover
  • Stainless steel strainer
  • Engineered polymer/thermoplastic seat
  • Elastomer valve disc
