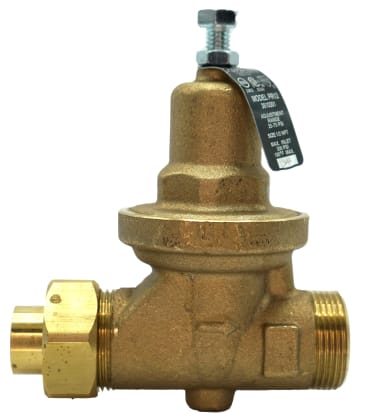

CONBRACO 36104P1 3/4 PRESSURE REDUCING VALVE WITH GAUGE PORT
Product Details
Attributes
Features
Resources
Apollo™, 36104P1, Pressure Reducing Valve, Direct Acting, Series: 36, 3/4 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H Dimensions, Domestic
Apollo® model PR (36 Series) pressure reducing valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
- Corrosion resistant bronze body and bonnet
- 100% factory tested, preset to 50 psi (-01)
- Control pressure ranges 10 to 35 psi, 25 to 75 psi (standard), 75 to 125 psi
- Integral stainless steel strainer
- Balanced piston design
- Internal thermal expansion by pass
- Multiple connection options
- Optional pressure gauge or tapping
- Up to 300 psig maximum supply pressure
- Bronze cover, FDA grade buna with polyester diaphragm, FDA grade EPDM seat disc, stainless steel spring
- High and low pressure model options
- Non-potable
Product Details
Apollo™, 36104P1, Pressure Reducing Valve, Direct Acting, Series: 36, 3/4 in Nominal, Single Union NPT End Style, 25 to 75 psi Pressure, 33 to 180 deg F, Media: Water, 5-5/8 in Inlet to Outlet Length, Bronze Body, Brass Trim, EPDM Seat Disc/Polypropylene Seal/Nitrile O-Ring Softgoods, 5-7/8 in H Dimensions, Domestic
Apollo® model PR (36 Series) pressure reducing valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
Attributes
Features
- Corrosion resistant bronze body and bonnet
- 100% factory tested, preset to 50 psi (-01)
- Control pressure ranges 10 to 35 psi, 25 to 75 psi (standard), 75 to 125 psi
- Integral stainless steel strainer
- Balanced piston design
- Internal thermal expansion by pass
- Multiple connection options
- Optional pressure gauge or tapping
- Up to 300 psig maximum supply pressure
- Bronze cover, FDA grade buna with polyester diaphragm, FDA grade EPDM seat disc, stainless steel spring
- High and low pressure model options
- Non-potable
