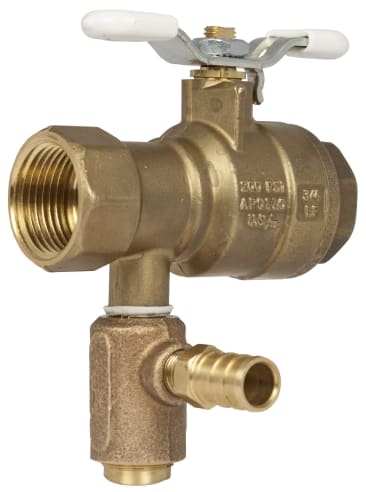

CONBRACO 78RV99580 Image 1
CONBRACO 78RV99580 Image 2
content loaded
CONBRACO 78RV99580 Image 1

CONBRACO 78RV99580 THERMAL EXPANSION RELIEF VALVE

MFR Part #: 78RV99580
SKU #: 1178945
Brand: Apollo™ Conbraco
UPC: 670750278860
Apollo™ 78RV99580 78RV Thermal Expansion Relief Valve, 3/4 in Nominal, F1807 PEX End Style, 80 psi Set Pressure, Domestic
5 Years
Commercial and Residential Application
City of Los Angeles Approved | cCSAus Certified | CSA B125.1/B125.3 | Federal Public Law 111-380 | IAPMO IGC 128-2008 | NSF/ANSI 372 Lead-Free | UPC Listed | UNS C27451 Body | PROP65: Cancer and Reproductive Harm

Apollo™, 78RV99580, Thermal Expansion Relief Valve, Series: 78RV, 3/4 in Nominal, F1807 PEX End Style, 80 psi Set Pressure, 210 deg F, Media: Water, Lever Actuator, 3-1/2 in Inlet to Outlet Length, RTFE Stem Bearing/RTFE Seat/Silicone Rubber Seat Relief/DZR Brass Stem/Stainless Steel Spring Relief Trim, 4.1 in H x 2.6 in D Dimensions, Domestic

The lead free Apollo 78-RV series combination water heater isolation valve/IAPMO approved thermal expansion relief device solves two code requirements while saving time, installation space and money! Ideal alternative to expansion tanks in residential plumbing systems. Made in the USA, featuring lead free dezincification resistant bronze materials.

Product Details

Apollo™, 78RV99580, Thermal Expansion Relief Valve, Series: 78RV, 3/4 in Nominal, F1807 PEX End Style, 80 psi Set Pressure, 210 deg F, Media: Water, Lever Actuator, 3-1/2 in Inlet to Outlet Length, RTFE Stem Bearing/RTFE Seat/Silicone Rubber Seat Relief/DZR Brass Stem/Stainless Steel Spring Relief Trim, 4.1 in H x 2.6 in D Dimensions, Domestic

The lead free Apollo 78-RV series combination water heater isolation valve/IAPMO approved thermal expansion relief device solves two code requirements while saving time, installation space and money! Ideal alternative to expansion tanks in residential plumbing systems. Made in the USA, featuring lead free dezincification resistant bronze materials.

Attributes

Country Of Origin: US
Nominal Size: 3/4 in
Temperature Rating: 210 deg F
Actuator Type: Lever
Body Material: DZR Brass
Dimensions: 4.1 in H x 2.6 in D
Domestic/Import: Domestic
End Style: F1807 PEX
Inlet to Outlet Length: 3-1/2 in
Media: Water
Series: 78RV
Set Pressure: 80 psi
Softgoods Material: RTFE Stem Packing
Trim Material: RTFE Stem Bearing/RTFE Seat/Silicone Rubber Seat Relief/DZR Brass Stem/Stainless Steel Spring Relief

Features

  • Relief valve factory set and sealed max 125 psi
