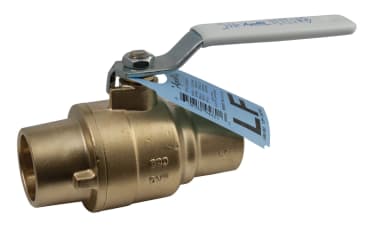

CONBRACO 77FLF20401 Image 1

CONBRACO 77FLF20401 3/4 BALL VALVE LEAD FREE BRS

MFR Part #: 77FLF20401
SKU #: 1111598
Brand: Apollo™ Conbraco
UPC: 670750372179
Apollo™ 77FLF20401 77FLF-200 2-Piece Ball Valve, 3/4 in Nominal, Solder End Style, Full Port, RPTFE Softgoods, Domestic
5 Years
Ideal for a wide range of plumbing and heating applications, including potable water
ARRA Compliant | Annex G | MSSP-SP-110 | IAPMO IGC-157 Ball Valves | FM 1140 | NSF/ANSI 61-8 | NSF/ANSI 372 | PROP65: Cancer and Reproductive Harm

Apollo™, 77FLF20401, Ball Valve, 2-Piece, Series: 77FLF-200, 3/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 3.13 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.

Product Details

Apollo™, 77FLF20401, Ball Valve, 2-Piece, Series: 77FLF-200, 3/4 in Nominal, Solder End Style, 600 psi CWP Pressure, 0 to 400 deg F, Full Port, Lever Operated Actuator, 3.13 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic

The Apollo™ 77FLF-200 series is a Lead Free full port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two piece style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 series valve is intended to be soft soldered into lines without disassembly. Proudly Made in the USA.

Attributes

Ball Material: Chrome Plated Brass
Body Material: Forged Brass
Connection Type: Solder
Country Of Origin: US
Domestic/Import: Domestic
Inlet to Outlet Length: 3.13 in
Nominal Size: 3/4 in
Operator Type: Lever Operated
Port Type: Full
Pressure Rating: 600 psi CWP
Series: 77FLF-200
Softgoods Material: RPTFE
Temperature Rating: 0 to 400 deg F
Top to Inlet Center: 1.91 in
Trim Material: Brass Stem/RPTFE Seat
Type: 2-Piece

Features

  • Heavy pattern forged design
  • Superior RPTFE seats and packing
  • Adjustable stem packing
  • Blow-out proof stem
  • Corrosion resistant materials
  • Silicone free assembly
  • 100% factory tested
  • Vacuum service to 29 in Hg
  • Corrosion resistant plated steel nut
  • Plated steel/insulated polyvinyl handle

Resources

Catalog
Specification Sheet
