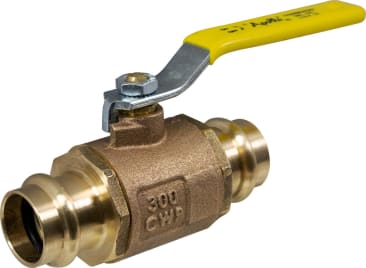

CONBRACO 77W10401A Image 1

CONBRACO 77W10401A BV 3/4 PRESSURE FP BRONZE

MFR Part #: 77W10401A
SKU #: 1238158
Brand: Apollo™ Conbraco
UPC: 670750896286
Apollo™ 77W10401A 77W-A Heavy Pattern Ball Valve, 3/4 in Nominal, Press End Style, Cast DZR Bronze Body, Full Port, EPDM/RPTFE Softgoods, Domestic
5 Years
Commercial, Heating, Cooling And Non-Potable Plumbing Systems Applications
ARRA Compliant | ASTM B16 | IAPMO/ANSI Z1157 | MSS SP-110 | UNS C36000 | PROP65: Cancer and Reproductive Harm

Apollo™, 77W10401A, Ball Valve, Heavy Pattern, Series: 77W-A, 3/4 in Nominal, Press End Style, 300 psi CWP Pressure, 0 to 250 deg F, Full Port, Media: Water, 3/4 in Orifice, Lever Handle Actuator, 3.8 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Cast DZR Bronze Body, Brass Stem/RPTFE Seat Trim, EPDM/RPTFE Softgoods, Domestic

The APOLLOPRESS® 77W-A Series Ball Valve is ideal for installation in heating, cooling and non-potable plumbing systems. Now with Leak Before Press® feature and 300 psig maximum working pressure.

Product Details

Apollo™, 77W10401A, Ball Valve, Heavy Pattern, Series: 77W-A, 3/4 in Nominal, Press End Style, 300 psi CWP Pressure, 0 to 250 deg F, Full Port, Media: Water, 3/4 in Orifice, Lever Handle Actuator, 3.8 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Cast DZR Bronze Body, Brass Stem/RPTFE Seat Trim, EPDM/RPTFE Softgoods, Domestic

The APOLLOPRESS® 77W-A Series Ball Valve is ideal for installation in heating, cooling and non-potable plumbing systems. Now with Leak Before Press® feature and 300 psig maximum working pressure.

Attributes

Actuator Type: Lever Handle
Ball Material: Brass
Body Material: Cast DZR Bronze
Country Of Origin: US
Domestic/Import: Domestic
End Style: Press
Inlet to Outlet Length: 3.8 in
Media: Water
Nominal Size: 3/4 in
Orifice Size: 3/4 in
Port Type: Full
Pressure Rating: 300 psi CWP
Series: 77W-A
Softgoods Material: EPDM/RPTFE
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 1.91 in
Trim Material: Brass Stem/RPTFE Seat
Type: Heavy Pattern

Features

  • Heavy pattern cast DZR bronze body
  • Adjustable stem packing
  • Fast, reliable, economical press installation
  • Ridgid XL press tool compatible
  • Leak Before Press technology
  • Blowout-proof stem design
  • Corrosion-resistant materials
  • 100% factory tested
  • RPTFE stem packing/EPDM O-ring seal

Resources

Instruction/Installation Manual
Specification Sheet
