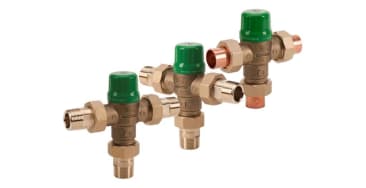

TACO 5120-2 MIXING VALVE BODY
MFR Part #: 5120-2
SKU #: 1225805
Brand: Taco® Comfort Solutions™
UPC: 687752140453
Taco® 5120-2 5120 Lead Free Mixing Valve, 230 psi Pressure, 1.8 Cv Flow, Forged Brass Body, Domestic
Check Valves
For Potable Water
UPC
Product Details
Attributes
Features
Resources
Taco®, 5120-2, Mixing Valve, Lead Free, Series: 5120, 230 psi Pressure, 85 to 176 deg F, 1.8 Cv Flow, 3.3 in Inlet to Outlet Length, Forged Brass Body, 3.8 in H x 3.3 in W Dimensions, Domestic
Country Of Origin:
US
Temperature Rating:
85 to 176 deg F
Body Material:
Forged Brass
Dimensions:
3.8 in H x 3.3 in W
Domestic/Import:
Domestic
Flow Capacity:
1.8 Cv
Inlet to Outlet Length:
3.3 in
Pressure Rating:
230 psi
Series:
5120
Type:
Lead Free
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
Product Details
Taco®, 5120-2, Mixing Valve, Lead Free, Series: 5120, 230 psi Pressure, 85 to 176 deg F, 1.8 Cv Flow, 3.3 in Inlet to Outlet Length, Forged Brass Body, 3.8 in H x 3.3 in W Dimensions, Domestic
Attributes
Country Of Origin: US
Temperature Rating: 85 to 176 deg F
Body Material: Forged Brass
Dimensions: 3.8 in H x 3.3 in W
Domestic/Import: Domestic
Flow Capacity: 1.8 Cv
Inlet to Outlet Length: 3.3 in
Pressure Rating: 230 psi
Series: 5120
Type: Lead Free
Features
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
