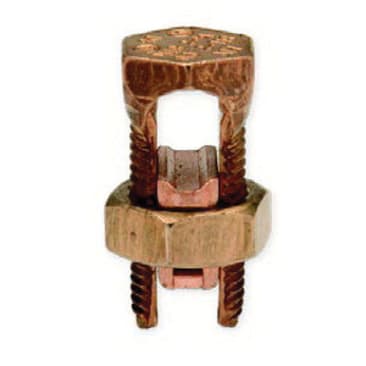

TECHSPAN SWA8 SPLIT BOLT
MFR Part #: SWA-8
SKU #: 1123276
Brand: Techspan® | Penn-Union™
UPC: 77685619207
Penn-Union™ by Techspan® SWA-8 Type SWA Split Bolt Connector, 2 to 2/0 AWG Solid/Stranded/Copper/Aluminum Conductor, 2.12 in L x 0.88 in W, Copper Alloy
UL 486A-B/AL9CU | CSA Certified | RoHS Compliant
Product Details
Attributes
Features
Resources
Penn-Union™ by Techspan® Split Bolt Connector, Type SWA, Solid/Stranded/Copper/Aluminum Conductor, 2 to 2/0 AWG Conductor, 2.12 in L x 0.88 in W Bolt, 600 VAC, Specifications: 2 Conductors, 390 in-lb Torque, 0.257 to 0.418 in Dia Wire, 90 deg C, Copper Alloy, Electro-Tin Plated, 0.419 x 1.12 in
Bolt Size:
2.12 in L x 0.88 in W
Conductor Size:
2 to 2/0 AWG
Conductor Type:
Solid/Stranded/Copper/Aluminum
Dimensions:
0.419 x 1.12 in
Finish:
Electro-Tin Plated
Material:
Copper Alloy
Rewards:
AD Rewards
Specifications:
2 Conductors, 390 in-lb Torque, 0.257 to 0.418 in Dia Wire
Temperature Rating:
90 deg C
Type:
Type SWA
Voltage Rating:
600 VAC
- Made from high strength, heat treated aluminum alloy highly resistant to corrosion
- Under torque this design provides high contact pressure between conductors
- Electro-TiN plated bolt, nut, spacer and pressure bar
- For all other applications, the use of Penn-Union™ by Techspan® Cual-Aid® #11C, oxide inhibiting compound, is recommended
- For aluminum to aluminum, copper to aluminum and copper to copper
- True hex design allows easy installation with standard tooling
Product Details
Penn-Union™ by Techspan® Split Bolt Connector, Type SWA, Solid/Stranded/Copper/Aluminum Conductor, 2 to 2/0 AWG Conductor, 2.12 in L x 0.88 in W Bolt, 600 VAC, Specifications: 2 Conductors, 390 in-lb Torque, 0.257 to 0.418 in Dia Wire, 90 deg C, Copper Alloy, Electro-Tin Plated, 0.419 x 1.12 in
Attributes
Bolt Size: 2.12 in L x 0.88 in W
Conductor Size: 2 to 2/0 AWG
Conductor Type: Solid/Stranded/Copper/Aluminum
Dimensions: 0.419 x 1.12 in
Finish: Electro-Tin Plated
Material: Copper Alloy
Rewards: AD Rewards
Specifications: 2 Conductors, 390 in-lb Torque, 0.257 to 0.418 in Dia Wire
Temperature Rating: 90 deg C
Type: Type SWA
Voltage Rating: 600 VAC
Features
- Made from high strength, heat treated aluminum alloy highly resistant to corrosion
- Under torque this design provides high contact pressure between conductors
- Electro-TiN plated bolt, nut, spacer and pressure bar
- For all other applications, the use of Penn-Union™ by Techspan® Cual-Aid® #11C, oxide inhibiting compound, is recommended
- For aluminum to aluminum, copper to aluminum and copper to copper
- True hex design allows easy installation with standard tooling
