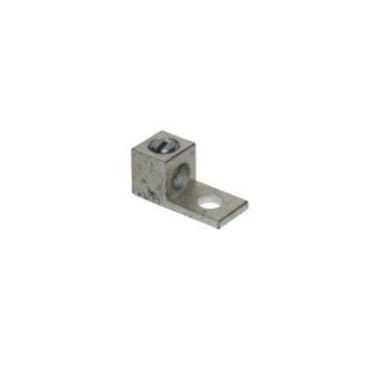

TECHSPAN LA2 ALUMINUM MECH LUG 14-2 1 CONNECTOR 1HOLE
MFR Part #: LA-2
SKU #: 1123259
Brand: Techspan® | Penn-Union™
UPC: 77685616019
Penn-Union™ by Techspan® Penn-Crimps® LA-2 Type LA Solderless Mechanical Lug, 14 to 2 AWG Aluminum/Copper Conductor, 17/64 in Stud, 1 Bolt Holes, Aluminum Alloy
UL 486B | CSA Certified | RoHS Compliant
Product Details
Attributes
Features
Penn-Union™ by Techspan® Penn-Crimps® Mechanical Lug, Type LA Solderless, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 17/64 in Stud, 1 Bolt Holes, 11/16 in L x 1/2 in W x 7/64 in THK Tongue, 600 VAC, Specifications: 1-Conductor, 5/16 in Hole Center to End Spacing, Aluminum Alloy, Electro-Plated Tin, 1-5/32 in L x 1/2 in W x 35/64 in H Dimensions
Conductor Size:
14 to 2 AWG
Conductor Type:
Aluminum/Copper
Country Of Origin:
US
Dimensions:
1-5/32 in L x 1/2 in W x 35/64 in H
Finish:
Electro-Plated Tin
Material:
Aluminum Alloy
Number of Bolt Holes:
1
Rewards:
AD Rewards
Specifications:
1-Conductor, 5/16 in Hole Center to End Spacing
Stud Size:
17/64 in
Tongue Size:
11/16 in L x 1/2 in W x 7/64 in THK
Type:
Type LA Solderless
Voltage Rating:
600 VAC
- Body, fabricated from high strength aluminum alloy extrusion
- Lug is 100% reusable using either screw driver or hex wrench, no special tools required
- Maximum conductivity, compact design light weight with ultimate strength
- Finish, electro-tin plated to assure minimum contact resistance and protection against corrosion when used with copper wire (for added protection apply Penn-Union CUAL-AID® to cable be fore installation)
- Front entrance copper or aluminum conductors
- Slotted screw
Product Details
Penn-Union™ by Techspan® Penn-Crimps® Mechanical Lug, Type LA Solderless, Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 17/64 in Stud, 1 Bolt Holes, 11/16 in L x 1/2 in W x 7/64 in THK Tongue, 600 VAC, Specifications: 1-Conductor, 5/16 in Hole Center to End Spacing, Aluminum Alloy, Electro-Plated Tin, 1-5/32 in L x 1/2 in W x 35/64 in H Dimensions
Attributes
Conductor Size: 14 to 2 AWG
Conductor Type: Aluminum/Copper
Country Of Origin: US
Dimensions: 1-5/32 in L x 1/2 in W x 35/64 in H
Finish: Electro-Plated Tin
Material: Aluminum Alloy
Number of Bolt Holes: 1
Rewards: AD Rewards
Specifications: 1-Conductor, 5/16 in Hole Center to End Spacing
Stud Size: 17/64 in
Tongue Size: 11/16 in L x 1/2 in W x 7/64 in THK
Type: Type LA Solderless
Voltage Rating: 600 VAC
Features
- Body, fabricated from high strength aluminum alloy extrusion
- Lug is 100% reusable using either screw driver or hex wrench, no special tools required
- Maximum conductivity, compact design light weight with ultimate strength
- Finish, electro-tin plated to assure minimum contact resistance and protection against corrosion when used with copper wire (for added protection apply Penn-Union CUAL-AID® to cable be fore installation)
- Front entrance copper or aluminum conductors
- Slotted screw
