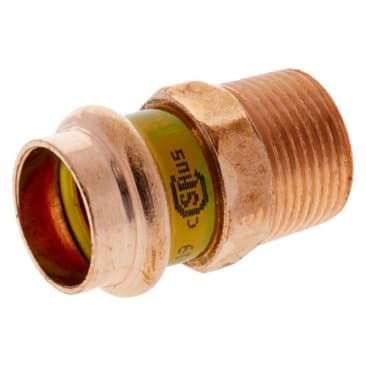

NIBCO 9030600HPC Image 1

NIBCO 9030600HPC PCH604 1/2 PRESS X M ADAPTER

MFR Part #: 9030600HPC
SKU #: 1220004
Brand: NIBCO®
UPC: 039923412485
NIBCO® PressG® 9030600HPC PCH604 Adapter, 1/2 in Nominal, Press x MNPT End Style, Wrot Copper, Domestic
25 years Limited
Yellow HNBR O-Ring
For PressG™ fittings are designed to join with seamless copper water tube in residential, commercial gas and compressed air systems
Alloy C12200 | ANSI LC4/CSA 6.32 | ASTM B75 | IAPMO/UPC LCL-4 | ICC-ES PMG 1036 | ICC-ES PMG 1502 | IFGC Certified | Low Lead Compliant | NSF/ANSI 372 | NFPA 30 | NFPA 30A | NFPA 31 | NFPA 58 | NFPA 54/Z223.1 | UPC Listed

NIBCO® PressG® Adapter, Series: PCH604, Adapter, 1/2 in Nominal, Press x MNPT, 200 psi, -40 to 180 deg F, Wrot Copper, 1.56 in L x 0.952 in W x 0.84 in H Dimensions, Cast, Domestic

The NIBCO® PressG™ copper male adapter features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds, with no flame, solder or flux. The male adapter has a press connection and male NPT thread. The fitting provides a method for adapting a press connection to a threaded connection.

Product Details

NIBCO® PressG® Adapter, Series: PCH604, Adapter, 1/2 in Nominal, Press x MNPT, 200 psi, -40 to 180 deg F, Wrot Copper, 1.56 in L x 0.952 in W x 0.84 in H Dimensions, Cast, Domestic

The NIBCO® PressG™ copper male adapter features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds, with no flame, solder or flux. The male adapter has a press connection and male NPT thread. The fitting provides a method for adapting a press connection to a threaded connection.

Attributes

Connection Type: Press x MNPT
Country Of Origin: US
Dimensions: 1.56 in L x 0.952 in W x 0.84 in H
Domestic/Import: Domestic
Fitting/Connector Type: Adapter
Material: Wrot Copper
Method of Manufacture: Cast
Pressure Class: 200 psi
Series: PCH604
Temperature Rating: -40 to 180 deg F

Features

  • Operating pressure 200 psi max, (125 psi for natural gas applications) depending on the application
  • UPC chapter 12 fuel piping
  • NFPA30 Flammable and Combustible Liquids Code
  • NFPA30A Code for Motor Fuel Dispensing Facilities and Repair Garages

Resources

Instruction/Installation Manual
Warranty Information
