NIBCO 9172650HPC PCH617 1/2 PRESS TUBE CAP
Product Details
Attributes
Features
Resources

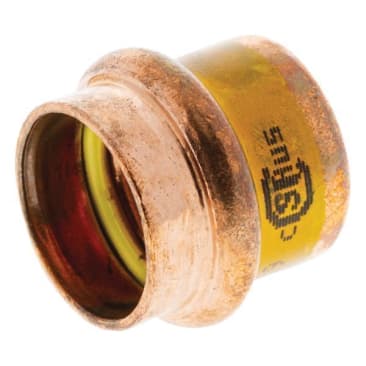

NIBCO® PressG® Tube Cap, Series: PCH617, Cap, 1/2 in Nominal, Press, 200 psi, -40 to 180 deg F, Wrot Copper, 0.863 in L x 0.95 in W x 0.95 in H Dimensions, Cast, Domestic
The NIBCO® PressG™ copper cap features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The cap has a press connection. The fitting is used to fit over the end of pipe to seal the end. NIBCO press fittings are the fastest, easiest way to join copper tubing.
- Operating pressure 200 psi max, (125 psi for natural gas applications) depending on the application
- UPC chapter 12 fuel piping
- NFPA30 Flammable and Combustible Liquids Code
- NFPA30A Code for Motor Fuel Dispensing Facilities and Repair Garages
Product Details
NIBCO® PressG® Tube Cap, Series: PCH617, Cap, 1/2 in Nominal, Press, 200 psi, -40 to 180 deg F, Wrot Copper, 0.863 in L x 0.95 in W x 0.95 in H Dimensions, Cast, Domestic
The NIBCO® PressG™ copper cap features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The cap has a press connection. The fitting is used to fit over the end of pipe to seal the end. NIBCO press fittings are the fastest, easiest way to join copper tubing.
Attributes
Features
- Operating pressure 200 psi max, (125 psi for natural gas applications) depending on the application
- UPC chapter 12 fuel piping
- NFPA30 Flammable and Combustible Liquids Code
- NFPA30A Code for Motor Fuel Dispensing Facilities and Repair Garages
