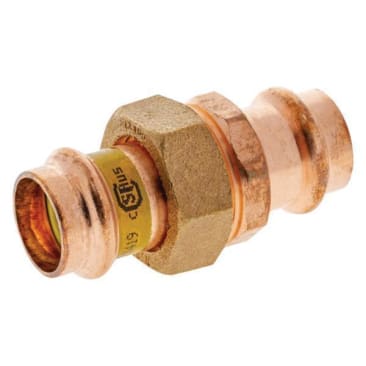

NIBCO 9256400HPC Image 1

NIBCO 9256400HPC PCH633 1/2 PRESS X PRESS UNION

MFR Part #: 9256400HPC
SKU #: 1220059
Brand: NIBCO®
UPC: 039923412676
NIBCO® PressG® 9256400HPC PCH633 Union, 1/2 in Nominal, Press End Style, Wrot Copper, Domestic
25 years Limited
Yellow HNBR O-Ring
For PressG™ fittings are designed to join with seamless copper water tube in residential, commercial gas and compressed air systems
Alloy C12200 | ANSI LC4/CSA 6.32 | ASTM B75 | IAPMO/UPC LCL-4 | ICC-ES PMG 1036 | ICC-ES PMG 1502 | IFGC Certified | Low Lead Compliant | NSF/ANSI 372 | NFPA 30 | NFPA 30A | NFPA 31 | NFPA 58 | NFPA 54/Z223.1 | UPC Listed | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

NIBCO® PressG® Union, Series: PCH633, Union, 1/2 in Nominal, Press, 200 psi, -40 to 180 deg F, Wrot Copper, 2.755 in L x 1.372 in W x 1.372 in H Dimensions, Cast, Domestic

The NIBCO® PressG™ wrot copper union features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a press tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The union has press connections. It is used to allow repair to the line without damage between two press connections.

Product Details

NIBCO® PressG® Union, Series: PCH633, Union, 1/2 in Nominal, Press, 200 psi, -40 to 180 deg F, Wrot Copper, 2.755 in L x 1.372 in W x 1.372 in H Dimensions, Cast, Domestic

The NIBCO® PressG™ wrot copper union features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a press tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The union has press connections. It is used to allow repair to the line without damage between two press connections.

Attributes

Connection Type: Press
Country Of Origin: US
Dimensions: 2.755 in L x 1.372 in W x 1.372 in H
Domestic/Import: Domestic
Fitting/Connector Type: Union
Material: Wrot Copper
Method of Manufacture: Cast
Pressure Class: 200 psi
Series: PCH633
Temperature Rating: -40 to 180 deg F

Features

  • Operating pressure 200 psi max, (125 psi for natural gas applications) depending on the application
  • UPC chapter 12 fuel piping
  • NFPA30 Flammable and Combustible Liquids Code
  • NFPA30A Code for Motor Fuel Dispensing Facilities and Repair Garages

Resources

Instruction/Installation Manual
Warranty Information
