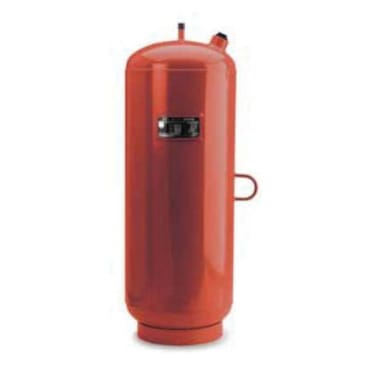

AMTROL AX-60V Image 1

AMTROL 438669 AV-60V 150PSI 33.6GAL EXPANSION TANK

MFR Part #: AX-60V
SKU #: 1291017
Brand: Armstrong Fluid Technology
UPC: 400051868749
Amtrol® EXTROL® AX-60V AX Series Vertical Diaphragm Hydronic Expansion Tank, 33.6 gal Capacity, 11.3 gal Acceptance, Heavy Duty Butyl/EPDM Diaphragm, 16 in Dia x 45 in H
For use in closed non-potable hydronic heating and chilled water systems and suitable in propylene glycol applications
ASME Section VIII|Division 1 Code Standards|IAPMO R and T Low-Lead|PHCC Association

Amtrol® EXTROL® Diaphragm Hydronic Expansion Tank, Vertical, Series: AX Series, 33.6 gal, 16 in Dia, 45 in Height, 11.3 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel Shell, Red Oxide Primer, Domestic

Amtrol® hydronic expansion tanks are for use in closed, non-potable hydronic heating and chilled water systems. Available in diaphragm, full acceptance and partial acceptance bladder designs, all Extrol®expansion tanks are made in the USA at our ISO 9001: 2008 registered facilities. ASME tanks meet all Section VIII, Division I standards.

Product Details

Amtrol® EXTROL® Diaphragm Hydronic Expansion Tank, Vertical, Series: AX Series, 33.6 gal, 16 in Dia, 45 in Height, 11.3 gal Acceptance Capacity, 240 deg F, Heavy Duty Butyl/EPDM Diaphragm, Steel Shell, Red Oxide Primer, Domestic

Amtrol® hydronic expansion tanks are for use in closed, non-potable hydronic heating and chilled water systems. Available in diaphragm, full acceptance and partial acceptance bladder designs, all Extrol®expansion tanks are made in the USA at our ISO 9001: 2008 registered facilities. ASME tanks meet all Section VIII, Division I standards.

Attributes

Acceptance Capacity: 11.3 gal
Capacity: 33.6 gal
Diameter: 16 in
Diaphragm Type: Heavy Duty Butyl/EPDM
Domestic/Import: Domestic
Finish: Red Oxide Primer
Height: 45 in
Material: Steel Shell
Series: AX Series
Temperature Rating: 240 deg F
Type: Vertical

Features

  • 12 psig factory precharged
  • Industries thickest fixed butyl/EPDM diaphragm
  • 1/2 in NPTF malleable iron center system connection
  • Schrader valve with EPDM seat air valve
