ARMSTRONG 570109-376 Image 1
ARMSTRONG 570109-376 Image 2
ARMSTRONG 570109-376 Image 3
ARMSTRONG 570109-376 Image 4
ARMSTRONG 570109-376 Image 5
content loaded

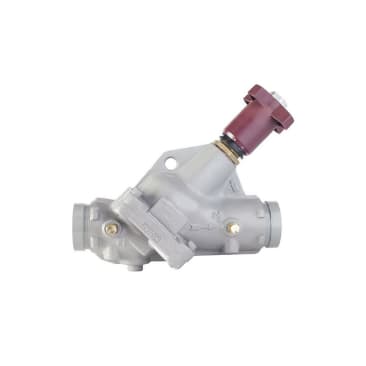

ARMSTRONG 570109-376 Image 1

ARMSTRONG 570109-376 2-1/2IN 125# FLANGE CBV-2-1/2 FS

MFR Part #: 570109-376
SKU #: 0521070
Brand: Armstrong Fluid Technology
UPC: 400000400501
ARMSTRONG 570109-376 Straight Circuit Balancing Valve, 2-1/2 in Nominal, Flanged, 1.9 to 4.4 gpm, 125 psi, 230 deg F
12 Month From Installation, 18 Month From Shipping
For HVAC and plumbing

ARMSTRONG Straight Circuit Balancing Valve, 2-1/2 in Nominal, Flanged Connection Type, 125 psi, 1.9 to 4.4 gpm, 12 in Inlet to Outlet Length, 9.62 in Top to Inlet Center, 5 Positions, Cast Iron Body, EPDM Seat, Brass Stem, Bronze Disc, Brass Trim, Buna-N/EPDM Softgoods, Hand Wheel Operator, 70 Cv Flow Coefficient, 230 deg F, Material Standard: ASTM A48 Class 30B, ASTM B584-C84400, ASTM B16, ASTM B283-C37700, Additional Information: Model CBV-FS

Product Details

ARMSTRONG Straight Circuit Balancing Valve, 2-1/2 in Nominal, Flanged Connection Type, 125 psi, 1.9 to 4.4 gpm, 12 in Inlet to Outlet Length, 9.62 in Top to Inlet Center, 5 Positions, Cast Iron Body, EPDM Seat, Brass Stem, Bronze Disc, Brass Trim, Buna-N/EPDM Softgoods, Hand Wheel Operator, 70 Cv Flow Coefficient, 230 deg F, Material Standard: ASTM A48 Class 30B, ASTM B584-C84400, ASTM B16, ASTM B283-C37700, Additional Information: Model CBV-FS

Attributes

Additional Information: Model CBV-FS
Body Material: Cast Iron
Connection Type: Flanged
Disc Material: Bronze
Flow Coefficient (Cv): 70 Cv
Flow Rate: 1.9 to 4.4 gpm
Inlet to Outlet Length: 12 in
Material Standard: ASTM A48 Class 30B, ASTM B584-C84400, ASTM B16, ASTM B283-C37700
Nominal Size: 2-1/2 in
Number of Positions: 5
Operator Type: Hand Wheel
Pressure Rating: 125 psi
Seat Material: EPDM
Softgoods Material: Buna-N/EPDM
Stem Material: Brass
Temperature Rating: 230 deg F
Top to Inlet Center: 9.62 in
Trim Material: Brass

Features

  • Innovative split body design supports straight and 90 deg field configurable installation with industry standard grooved ends or flanges
  • 5 - 14 complete 360 deg turns from open to closed, providing unparalleled flow control and energy savings
  • Minimum 5 turn micrometer style handle unparalleled adjustment precision
  • Y-pattern globe valve design, minimizes flow turbulence
  • Handle set point indicator easily return to an earlier setting
  • Flexible Installation convertible design allows field adjustment to either straight or angled configuration
  • Re-packing valve under full system pressure
