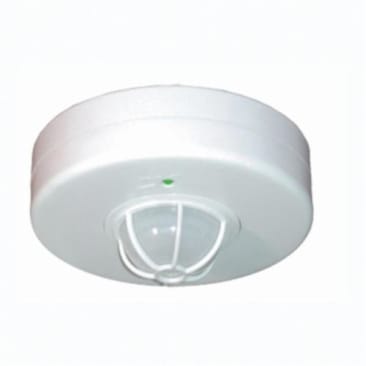

RCL LOS2500/120 OCCUPANCY SENSOR CEILING 2000W 120V WHITE
MFR Part #: LOS2500/120
SKU #: 1080594
Brand: RAB Lighting
UPC: 019813742601
RAB LOS2500/120 Infrared Non-Fixture Ceiling Mount Occupancy Sensor, 120 V AC, Infrared Sensor, 2152 sq-ft Coverage, 360 deg Viewing, Ceiling Mounting
Outdoor Applications
UL Listed
Product Details
Attributes
Features
Resources
RAB, LOS2500/120, Ceiling Mount Occupancy Sensor, Infrared Non-Fixture, 120 V AC, 16 A, 2000 W Power, Infrared Sensor, 2152 sq-ft Coverage, 360 deg Viewing, 10 s to 15 min Time Delay, Fluorescent/Incandescent Lamp, Ceiling Mounting, Polycarbonate, White, 2-1/4 in H x 4-5/8 in W Dimensions
Amperage Rating:16 A
Color:White
Country Of Origin:China
Coverage:2152 sq-ft
Dimensions:2-1/4 in H x 4-5/8 in W
Lamp Type:Fluorescent/Incandescent
Material:Polycarbonate
Power Rating:2000 W
Sensor Type:Infrared
Time Delay:10 s to 15 min
Type:Infrared Non-Fixture
Viewing Angle:360 deg
Voltage Rating:120 V AC
- Super ceiling sensor has 3 detectors for triple overlapping coverage to catch small movements
- LED testing and operation indicator
- Maximum coverage 360 or hallway models
- Relay and sensor all in one unit reduces installation costs
- Can be wired in parallel
- Compatible with program start ballasts
- 360 deg view super ceiling sensor with triple overlapping coverage for super sensitivity
- No extra wires to run or extra boxes to install, covers 2152 sq-ft at 9 ft H
- Not compatible with instant start ballasts, LED testing and operation indicator
- Adjustable detector sensitivity for superior detection
- Adjustable time delay, sensor detection pattern can be customized, no minimum load requirement, can be wired in parallel
- Photo time sensitivity
Product Details
RAB, LOS2500/120, Ceiling Mount Occupancy Sensor, Infrared Non-Fixture, 120 V AC, 16 A, 2000 W Power, Infrared Sensor, 2152 sq-ft Coverage, 360 deg Viewing, 10 s to 15 min Time Delay, Fluorescent/Incandescent Lamp, Ceiling Mounting, Polycarbonate, White, 2-1/4 in H x 4-5/8 in W Dimensions
Attributes
Amperage Rating: 16 A
Color: White
Country Of Origin: China
Coverage: 2152 sq-ft
Dimensions: 2-1/4 in H x 4-5/8 in W
Lamp Type: Fluorescent/Incandescent
Material: Polycarbonate
Power Rating: 2000 W
Sensor Type: Infrared
Time Delay: 10 s to 15 min
Type: Infrared Non-Fixture
Viewing Angle: 360 deg
Voltage Rating: 120 V AC
Features
- Super ceiling sensor has 3 detectors for triple overlapping coverage to catch small movements
- LED testing and operation indicator
- Maximum coverage 360 or hallway models
- Relay and sensor all in one unit reduces installation costs
- Can be wired in parallel
- Compatible with program start ballasts
- 360 deg view super ceiling sensor with triple overlapping coverage for super sensitivity
- No extra wires to run or extra boxes to install, covers 2152 sq-ft at 9 ft H
- Not compatible with instant start ballasts, LED testing and operation indicator
- Adjustable detector sensitivity for superior detection
- Adjustable time delay, sensor detection pattern can be customized, no minimum load requirement, can be wired in parallel
- Photo time sensitivity
