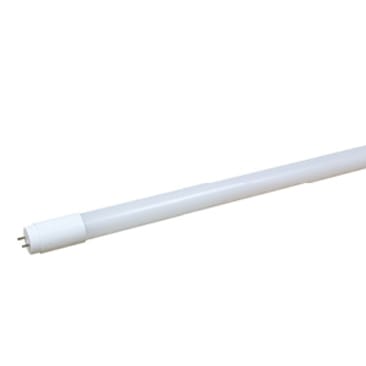

STANPRO 68426 Image 1
AD Rewards

STANPRO 68426 24 T8 G13 BASE 120-277V 9W 1200LUM 40K LED LAMP

MFR Part #: 68426
SKU #: 1260931
Brand: Stanpro
UPC: 069549016101
STANDARD® 68426 Ballast Bypass Double Ended Linear Non-Dimmable Fluorescent Replacement LED Lamp, 9 W, G13 Min 2-Pin LED Lamp, T8 Shape, 1200 Lumens
5 years
This product may be subject to ecological fees.
Damp Location Applications
cRUus Listed | DLC Listed | FCC Listed | ICES 005 | RoHS Compliant

STANDARD® Fluorescent Replacement LED Lamp, Ballast Bypass Double Ended Linear Non-Dimmable, T8/S2/9W/840/24/BYP/120-277/ND/STD Designation, 9 W Wattage, 120 to 277 VAC, LED Lamp, G13 Min 2-Pin Lamp Base, T8 Shape, 1200 Lumens, 56000 hr Average Life, 82 CRI, 4000 K Color Temperature, Frosted Lamp, Enclosed Fixture, 220 deg Beam, 1-9/64 in Dia x 24 in L Dimensions

The ballast bypass solution is perfect for long term installation, no need to go back and replace the ballast at a later time thus reducing maintenance costs. UL type B lamps offer the best system efficiency, no additional power consumption is drawn from the ballast. The double ended technology can operate with shunted and non-shunted sockets.

Product Details

STANDARD® Fluorescent Replacement LED Lamp, Ballast Bypass Double Ended Linear Non-Dimmable, T8/S2/9W/840/24/BYP/120-277/ND/STD Designation, 9 W Wattage, 120 to 277 VAC, LED Lamp, G13 Min 2-Pin Lamp Base, T8 Shape, 1200 Lumens, 56000 hr Average Life, 82 CRI, 4000 K Color Temperature, Frosted Lamp, Enclosed Fixture, 220 deg Beam, 1-9/64 in Dia x 24 in L Dimensions

The ballast bypass solution is perfect for long term installation, no need to go back and replace the ballast at a later time thus reducing maintenance costs. UL type B lamps offer the best system efficiency, no additional power consumption is drawn from the ballast. The double ended technology can operate with shunted and non-shunted sockets.

Attributes

Color Temperature: 4000 K
Country Of Origin: China
Lamp Type: LED
Lumens: 1200 Lumens
Rewards: AD Rewards
Wattage: 9 W
Average Life: 56000 hr
Beam Angle: 220 deg
Color Rendering Index (CRI): 82
Designation: T8/S2/9W/840/24/BYP/120-277/ND/STD
Dimensions: 1-9/64 in Dia x 24 in L
Fixture Type: Enclosed
Lamp Base Type: G13 Min 2-Pin
Lamp Finish: Frosted
Shape: T8
Type: Ballast Bypass Double Ended Linear Non-Dimmable
Voltage Rating: 120 to 277 VAC

Features

  • This lamp only operates on ballast bypass installation in 120 to 277 V applications
  • Not for use in 347 V direct line voltage applications

Resources

Owners/User Manual
Specification Sheet
