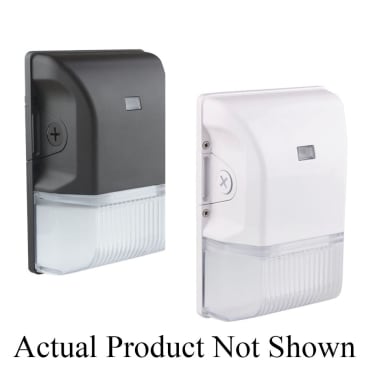

STANPRO 68313 Image 2
AD Rewards

STANPRO 68313 WC1-LS2-W/3C-WH 20 WATT WHT WALL PACK

MFR Part #: 68313
SKU #: 1238813
Brand: Stanpro
UPC: 069549015913
STANPRO WCI-L Series 68313 Mini Wall Pack With Photocell, 120-277 VAC, LED Lamp, 1725 to 2926 Lumens
5 Year
For security lighting over entrances, stairwells and pedestrian areas
cULus Listed | DLC QPL Listed | ICES-005 Class B Certified | IP65 Rated | Wet Location Rated

STANPRO Mini Wall Pack With Photocell, WCI-L Series, 120-277 VAC, 0.31 A, LED Lamp, 20 W Lamp Wattage, 1725 to 2926 Lumens, 4000 K, 4500 K, 5000 K, 80 CRI, Non-Dimmable, >54000 hr Average Life, Frosted Polycarbonate Lens, Aluminum Fixture, White Fixture, 5.79 in Overall Length, 3.07 in Overall Width, 8.58 in Overall Height, Surface Mounting

The WCI-L is a high performing compact multi-purpose wall pack that is CCT selectable. This luminaire is offered in two lumen packages and has been designed for use in most commercial and residential installations.

Product Details

STANPRO Mini Wall Pack With Photocell, WCI-L Series, 120-277 VAC, 0.31 A, LED Lamp, 20 W Lamp Wattage, 1725 to 2926 Lumens, 4000 K, 4500 K, 5000 K, 80 CRI, Non-Dimmable, >54000 hr Average Life, Frosted Polycarbonate Lens, Aluminum Fixture, White Fixture, 5.79 in Overall Length, 3.07 in Overall Width, 8.58 in Overall Height, Surface Mounting

The WCI-L is a high performing compact multi-purpose wall pack that is CCT selectable. This luminaire is offered in two lumen packages and has been designed for use in most commercial and residential installations.

Attributes

Amperage Rating: 310 mA, .31 A
Average Life: >54000 hr
Color Rendering Index (CRI): 80
Color Temperature: 4000/4500/5000 K, 4000 K, 4500 K, 5000 K
Dimensions: 8.58 in H x 3.07 in W x 5.79 in L
Dimmable/Non-Dimmable: Non-Dimmable
Enclosure Type: IP65
Fixture Finish: White
Fixture Material: Aluminium
Fixture Wattage: 20 W
Housing Finish: White
Housing Material: Die Cast Aluminum
Lamp Type: LED
Lamp Wattage: 20 W
Lens Type: Frosted Polycarbonate
Light Output: 127 Lumens/W
Lumens: 2522, 2926, 2637 Lumens, 1725 to 2926 Lumens
Mounting Type: Surface
Overall Height: 8.58 in
Overall Length: 5.79 in
Overall Width: 3.07 in
Rewards: AD Rewards
Series: WCI-L Series, WCI-L
Type: Mini
Voltage Rating: 120-277 VAC, 120 to 277 VAC

Features

  • This luminaire is constructed with aluminum die-cast housing featuring an integrated 120 to 277 VAC photocell which can easily be disabled
  • Surface mount to a junction box or use with surface conduit
  • Equipped with a polycarbonate frosted lens

Resources

Instruction/Installation Manual
Line Drawing
Specification Sheet
