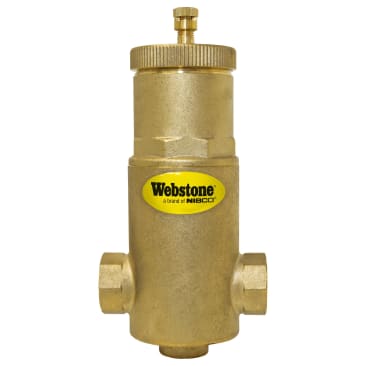

2IN AIR SEPARATOR WEBSTONE 74007

MFR Part #: 74007
SKU #: 1159117
Brand: NIBCO® | Webstone
UPC: 018394740075
Please note this item is discontinued (order fulfillment will depend on stock availability): Webstone 74007 THD-7X00 Horizontal Air Separator, 2 in Nominal, FNPT Connection, 150 psi CWP Working, 250 deg F, Brass, Import
Lifetime
Residential, Commercial or Industrial Applications
ANSI B1.20.1 | ISO 9001 | PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Webstone, 74007, Air Separator, Horizontal, Series: THD-7X00, 2 in Nominal, FNPT Connection, 150 psi CWP Working, 250 deg F, Suitable Media: Glycol Mixture/Oil/Water, 40 gpm Flow Rate, Brass, 8-13/16 in H x 5-1/8 in W Dimensions, Import

Webstone offers a wide array of products designed to support efficient opperations. Designed for use with water, oil, glycol mix in residential or commercial heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Product Details

Webstone, 74007, Air Separator, Horizontal, Series: THD-7X00, 2 in Nominal, FNPT Connection, 150 psi CWP Working, 250 deg F, Suitable Media: Glycol Mixture/Oil/Water, 40 gpm Flow Rate, Brass, 8-13/16 in H x 5-1/8 in W Dimensions, Import

Webstone offers a wide array of products designed to support efficient opperations. Designed for use with water, oil, glycol mix in residential or commercial heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

Attributes

Connection Type: FNPT
Country Of Origin: China
Dimensions: 8-13/16 in H x 5-1/8 in W
Domestic/Import: Import
Flow Rate: 40 gpm
Material: Brass
Nominal Size: 2 in
Series: THD-7X00
Suitable Media: Glycol Mixture/Oil/Water
Temperature Rating: 250 deg F
Type: Horizontal
Working Pressure: 150 psi CWP

Features

  • Unique Stainless Steel Coalescing Medium Captures Micro Bubbles and Static Air in a Hydronic System
  • Pin Guided Float Ensures Jam Free Operation
  • Flow May be Directed into Either Side of the Unit
  • Reduces Noise and Wear on System Components
  • Improves System Efficiency and Operation
  • Minimizes Customer Call Backs and Requires No Regular Maintenance
  • Brass Air Separator, with Removable Vent Head and Coalescing Medium
