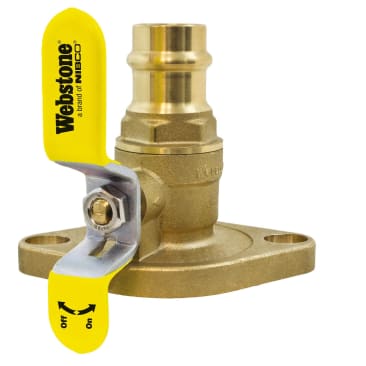

WEBSTONE H-81404HV 1 PRESS X FLANGE ISOLATOR W/ROT FLG
Product Details
Attributes
Features
Resources
Webstone The Isolator® Ball Valve, Series: 8140, 1 in Nominal, Press x Rotating Flanged, 250 psi, 250 deg F, Full Port, Media: Water, Polished Chrome Brass Ball, 4 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Import
The Isolator is a uni-flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged Ball Valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
- Flange features a conical inlet to minimize turbulence
- Fits virtually any standard circulator pump
- Saves 18 minutes
- Replaces 3 components
- This valve is actuated by a Blow-Out proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Available in Lead-Free
Product Details
Webstone The Isolator® Ball Valve, Series: 8140, 1 in Nominal, Press x Rotating Flanged, 250 psi, 250 deg F, Full Port, Media: Water, Polished Chrome Brass Ball, 4 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Import
The Isolator is a uni-flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged Ball Valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
Attributes
Features
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
- Flange features a conical inlet to minimize turbulence
- Fits virtually any standard circulator pump
- Saves 18 minutes
- Replaces 3 components
- This valve is actuated by a Blow-Out proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Available in Lead-Free
