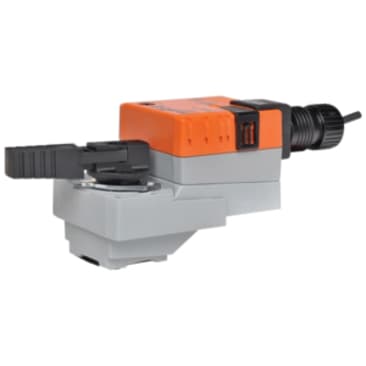

BELIMO ARX120-3 Image 1

BELIMO ARX120-3 20 NM / 180 IN LB AC230V ACTUATOR

MFR Part #: ARX120-3
SKU #: 1208503
Brand: BELIMO®
UPC: 947464
BELIMO® ARX120-3 Valve Actuator, Plastic/Steel
5 Year
cCSA E60730-1:02 | CE According to 2014/30/EU and 2014/35/EU | cULus Listed | UL 2043 | UL 60730-1A/2-14

BELIMO® Valve Actuator, 100-240 VAC, 50/60 Hz, VA Rating: 7 VA, 3, 10, 16 ft, 18 AWG Appliance Cable with 1/2 in Conduit Connector Electrical Connection, 3 W, 0.6 W Power Consumption, 90 s Timing, 45 dBA Noise Level, NEMA 2, IP54 Enclosure, 90 deg Rotation Angle, On/Off, Floating Point Signal, Maintenance-Free Service, Plastic/Steel Body, Finish: Galvanized, -40 to 176 deg F

Product Details

BELIMO® Valve Actuator, 100-240 VAC, 50/60 Hz, VA Rating: 7 VA, 3, 10, 16 ft, 18 AWG Appliance Cable with 1/2 in Conduit Connector Electrical Connection, 3 W, 0.6 W Power Consumption, 90 s Timing, 45 dBA Noise Level, NEMA 2, IP54 Enclosure, 90 deg Rotation Angle, On/Off, Floating Point Signal, Maintenance-Free Service, Plastic/Steel Body, Finish: Galvanized, -40 to 176 deg F

Attributes

Body Material: Plastic/Steel
Electrical Connection: 3, 10, 16 ft, 18 AWG Appliance Cable with 1/2 in Conduit Connector
Enclosure Type: NEMA 2, IP54
Finish: Galvanized
Frequency Rating: 50/60 Hz
Noise Level: 45 dBA
Power Consumption: 3 W, 0.6 W
Rotation Angle: 90 deg
Service Type: Maintenance-Free
Signal Type: On/Off, Floating Point
Temperature Rating: -40 to 176 deg F
Timing Range: 90 s
VA Rating: 7 VA
Voltage Rating: 100-240 VAC

Features

  • Mechanically, pluggable position indication
  • Electronic throughout 0 to 95 deg rotation overload protection
  • Selectable with switch 0/1 direction of motion motor
  • External pushbutton manual override

Resources

Specification Sheet
