RAB 095801-1/2DVXJ/C-BRZ 4 BOX ALUM W/1/2 ENTRY & CVR BRZ
MFR Part #: 1/2DVXJC-R
SKU #: 1208481
Brand: RAB® Design Lighting
UPC: 61184958013

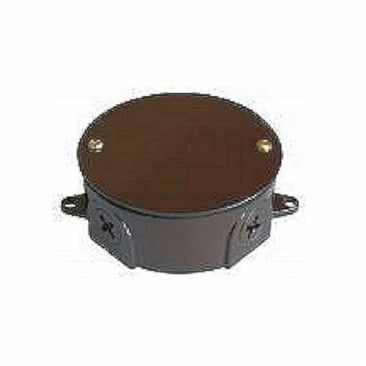

RAB® 1/2DVXJC-R Weatherproof Junction Box With Cover, Die Cast Aluminum, 5 Outlets, 5.625 in H x 1.9 in W x 1.5625 in D
(4) Threaded Plugs, (1) Neoprene Gasket, (1) Ground Screw, (2) Brass Cover Screws and (1) Stamped Aluminum Cover
For industrial or commercial applications
cULus Listed
Product Details
Attributes
Features
Resources
RAB® Junction Box, Weatherproof, 5 Outlets, 1/2 in Hub, Threaded Hub, 4.12 in Dia, Round, Lug Mount, Die Cast Aluminum, Sand Blasted, Bronze, 5.625 in H x 1.9 in W x 1.5625 in D
Color:Bronze
Country Of Origin:US
Finish:Sand Blasted
Hub Size:1/2 in
Material:Die Cast Aluminum
Mounting Type:Lug
Number of Outlets:5
Shape:Round
Type:Weatherproof
- Cast aluminum box with 5 X 1/2 in or 3/4 in threaded entries
- Precision die-cast aluminum, 4 in diameter and 1-9/16 in deep
- Each unit has two opposing mounting feet
- There are four internal posts for mounting covers, 90 deg apart, two additional posts 180 deg apart for universal cross bars
- Stamped aluminum installed with two 10 to 24 zinc plated screws
- Five conduit entries, four on the side, one on the bottom, threaded, available as 1/2 or 3/4
- Each unit comes complete with four plugs installed, made of cast aluminum, threaded to match side conduit entries and one ground screw installed
Product Details
RAB® Junction Box, Weatherproof, 5 Outlets, 1/2 in Hub, Threaded Hub, 4.12 in Dia, Round, Lug Mount, Die Cast Aluminum, Sand Blasted, Bronze, 5.625 in H x 1.9 in W x 1.5625 in D
Attributes
Color: Bronze
Country Of Origin: US
Finish: Sand Blasted
Hub Size: 1/2 in
Material: Die Cast Aluminum
Mounting Type: Lug
Number of Outlets: 5
Shape: Round
Type: Weatherproof
Features
- Cast aluminum box with 5 X 1/2 in or 3/4 in threaded entries
- Precision die-cast aluminum, 4 in diameter and 1-9/16 in deep
- Each unit has two opposing mounting feet
- There are four internal posts for mounting covers, 90 deg apart, two additional posts 180 deg apart for universal cross bars
- Stamped aluminum installed with two 10 to 24 zinc plated screws
- Five conduit entries, four on the side, one on the bottom, threaded, available as 1/2 or 3/4
- Each unit comes complete with four plugs installed, made of cast aluminum, threaded to match side conduit entries and one ground screw installed
