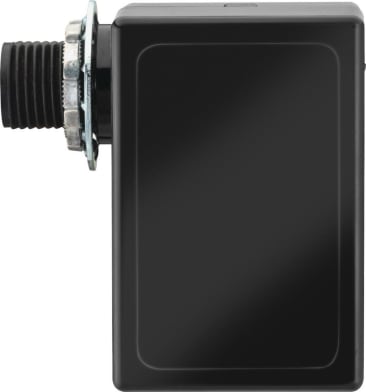

SENSOR SWITCH PP20 Image 1

SENSOR SWITCH 184CHH POWER PACK

MFR Part #: PP20
SKU #: 1224464
Brand: Acuity Brands®
UPC: 745975809592
Acuity Brands® PP20 Standard Power/Relay Module, 120/277 VAC Power Rating, 15/24 VDC Input, 15/24 VDC Output, 150 mA
Education, Government, Healthcare, Hospitality, Manufacturing, Offices, Banks, Religious, Retail, Sports, Recreation and Warehouses
UL Listed | CUL Listed | RoHS Compliant | Title 24 System Component

Acuity Brands® Power/Relay Module, Standard, 120/277 VAC, 15/24 VDC Input, 15/24 VDC Output, 150 mA, 3 in W, 1.88 in D, 4.13 in Height, Black

Lithonia Lighting’s PP20 Power Pack transforms 120, 240 or 277 Volts to Class II 15 VDC to power remote sensors. The PP20 also switches the lighting load On and Off, which is a method that has been tested to over 400,000 cycles at rated load. Up to 14 sensors may be connected to one PP20, allowing for maximum power efficiency.

Product Details

Acuity Brands® Power/Relay Module, Standard, 120/277 VAC, 15/24 VDC Input, 15/24 VDC Output, 150 mA, 3 in W, 1.88 in D, 4.13 in Height, Black

Lithonia Lighting’s PP20 Power Pack transforms 120, 240 or 277 Volts to Class II 15 VDC to power remote sensors. The PP20 also switches the lighting load On and Off, which is a method that has been tested to over 400,000 cycles at rated load. Up to 14 sensors may be connected to one PP20, allowing for maximum power efficiency.

Attributes

Amperage Rating: 150 mA
Color: Black
Depth: 1.88 in
Height: 4.13 in
Input Voltage: 15/24 VDC
Output Voltage: 15/24 VDC
Power Rating: 120/277 VAC
Type: Standard
Width: 3 in

Features

  • Power Packs are the heart of the low voltage sensor system
  • The PP20 transforms 120, 240 or 277 V to Class II 15 VDC to power the remote sensors
  • Utilizing our patented relay circuit protection, the PP20 also switches the lighting load on and off
  • This method has been tested to over 400,000 cycles at rated load
  • MOUNTING - Can be mounted directly through a 1/2 in knockout in a junction box or inside an adjacent box for specific local code requirements
  • RELAY - Self-contained relay(s) switch line voltage loads

Resources

Specification Sheet
