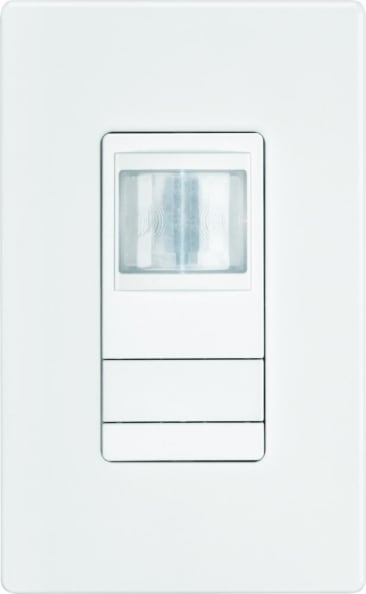

ACUITY 2685RN MULTI WAY OPT WALL SWITCH SENSOR
MFR Part #: WSXA MWO PDT WH
SKU #: 1258816
Brand: Acuity Brands | Sensor Switch™
UPC: 194994463078
Sensor Switch™ WSXA MWO PDT WH WSXA Wall Switch Occupancy Sensors, 120 to 277 VAC, Single Gang Box Mounting
CA Title 20 | CSA
Product Details
Attributes
Features
Resources
Sensor Switch™, WSXA MWO PDT WH, Wall Switch Occupancy Sensors, Series: WSXA, 120 to 277 VAC, Single Gang Box Mounting, 32 to 140 deg F, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions
Color:
White
Dimensions:
2.74 in H x 1.68 in W x 1.63 in D
Mounting Type:
Single Gang Box
Series:
WSXA
Temperature Rating:
32 to 140 deg F
Voltage Rating:
120 to 277 VAC
- Single Pole devices can be programmed with Sensor Switch VLP app or traditional push button programming
- WSXA MWO can be used in conjunction with sPODMRA MWO
- Devices can be spaced up to 250 ft with MWO option
- MWO option support up to 9 additional MWO enabled devices (2 neutral-less) on a single traveler
- Compatible with LEDs, electronic & magnetic ballasts, CFLs, & incandescents
- 100% passive detection, no potential for interference with other building systems
- Small motion detection to up to 20 ft, Large motion detection up to 36ft
- Push-button programmable without removing cover plate adjustable time delays & operating modes
- Dual technology (PDT) utilizes PIR/Microphonics detection (patented)
- Device accommodates powering over ground or neutral connection (patent pending)
- No current leakage to ground when connected to neutral
- Line power and load wires are interchangeable, impossible to wire backwards (patented) Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present
- New aesthetic with vandal resistant lens
Product Details
Sensor Switch™, WSXA MWO PDT WH, Wall Switch Occupancy Sensors, Series: WSXA, 120 to 277 VAC, Single Gang Box Mounting, 32 to 140 deg F, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions
Attributes
Color: White
Dimensions: 2.74 in H x 1.68 in W x 1.63 in D
Mounting Type: Single Gang Box
Series: WSXA
Temperature Rating: 32 to 140 deg F
Voltage Rating: 120 to 277 VAC
Features
- Single Pole devices can be programmed with Sensor Switch VLP app or traditional push button programming
- WSXA MWO can be used in conjunction with sPODMRA MWO
- Devices can be spaced up to 250 ft with MWO option
- MWO option support up to 9 additional MWO enabled devices (2 neutral-less) on a single traveler
- Compatible with LEDs, electronic & magnetic ballasts, CFLs, & incandescents
- 100% passive detection, no potential for interference with other building systems
- Small motion detection to up to 20 ft, Large motion detection up to 36ft
- Push-button programmable without removing cover plate adjustable time delays & operating modes
- Dual technology (PDT) utilizes PIR/Microphonics detection (patented)
- Device accommodates powering over ground or neutral connection (patent pending)
- No current leakage to ground when connected to neutral
- Line power and load wires are interchangeable, impossible to wire backwards (patented) Integrated Photocell (disabled by default) prevents light from turning on if sufficient daylight is present
- New aesthetic with vandal resistant lens
