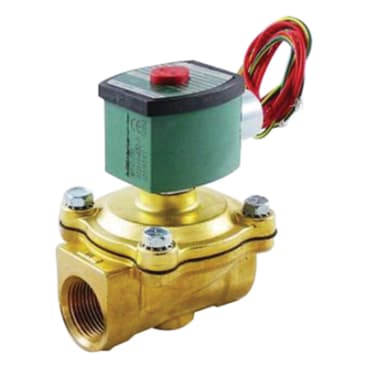

ASCO 8210G94 Image 1

ASCO 8210G094 120/60 120V AC 1/2 IP NC SOLENOID VALVE

MFR Part #: 8210G94
SKU #: 0472002
Brand: Asco
UPC: 400000366357
Asco 8210G94 Solenoid Valve, 1/2 in Nominal, NPT, 2-Way, 2-Position-Port/Way, 180 deg F AC, 150 deg F DC Fluid
For industrial applications include car wash, laundry equipment, air compressors, industrial water control and pumps
CE Certified | CSA Certified

Asco Solenoid Valve, 1/2 in Nominal, NPT Connection, NC, 0 to 150 psi Air to Inert Gas and Water AC, 40 psi Air to Inert Gas and Water DC Differential, 5/8 in Orifice, Coil Insulation Class: Class F, Number of Ports/Ways: 2-Way, 2-Position, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Brass Body, NBR/PTFE Seal, NBR/PTFE Disc, 180 deg F AC, 150 deg F DC Fluid, 2.75 in L x 2.28 in W x 3.84 in H

Product Details

Asco Solenoid Valve, 1/2 in Nominal, NPT Connection, NC, 0 to 150 psi Air to Inert Gas and Water AC, 40 psi Air to Inert Gas and Water DC Differential, 5/8 in Orifice, Coil Insulation Class: Class F, Number of Ports/Ways: 2-Way, 2-Position, NEMA 1, 2, 3, 3S, 4, 4X Enclosure, Brass Body, NBR/PTFE Seal, NBR/PTFE Disc, 180 deg F AC, 150 deg F DC Fluid, 2.75 in L x 2.28 in W x 3.84 in H

Attributes

Body Material: Brass
Coil Insulation Class: Class F
Configuration: NC
Connection Type: NPT
Dimensions: 2.75 in L x 2.28 in W x 3.84 in H
Disc Material: NBR/PTFE
Enclosure Type: NEMA 1, 2, 3, 3S, 4, 4X
Nominal Size: 1/2 in
Number of Ports/Ways: 2-Way, 2-Position
Orifice Size: 5/8 in
Pressure Rating: 0 to 150 psi Air to Inert Gas and Water AC, 40 psi Air to Inert Gas and Water DC Differential
Seal Material: NBR/PTFE
Temperature Rating: 180 deg F AC, 150 deg F DC Fluid

Features

  • Wide range of pressure ratings, sizes and resilient materials provide long service life and low internal leakage
  • High-flow valves for liquid, corrosive and air/inert gas service
  • PA disc holder
  • 305 stainless steel core tube, 430F stainless steel core and plugnut, 302 stainless steel core spring
  • Copper shading coil
  • Closed when de-energized
  • Diaphragm construction
  • 10.1 W AC, 11.6 W DC, 25 V-A holding, 70 V-A inrush power rating
  • 120 VAC at 60 Hz voltage rating

Resources

Catalog
Specification Sheet
