HUBBELL CXRTC Image 1

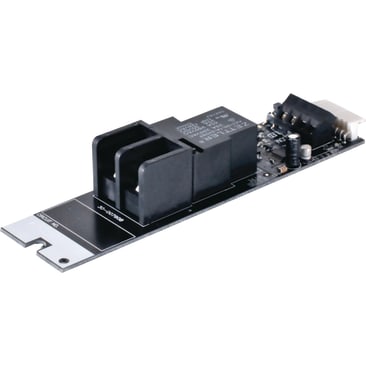

20A/2P N/C RELAY HUBBELL CXRTC

MFR Part #: CXRTC
SKU #: 1114937
Brand: Hubbell Control Solutions
UPC: 640181200822
NX Lighting Controls CXRTC Latching Electrically Held Normally Closed Normally Open Lighting Control Relay, 208/240/480 V AC, 20 A, Panel Mount, 2 Poles
5 years Limited
(1) Programmable Input, Photocells or Motion Sensors
CX Panels, Indoor, Outdoor Lighting, Parking Lot, Parking Garage, Education, Healthcare, Hospitality, Manufacturing, Retail and Warehouse and Commercial Applications
UL 916 | UL 924 | cCAN/CSA C22.2 No. 205 | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

NX Lighting Controls Lighting Control Relay, Latching Electrically Held Normally Closed Normally Open, Series: CXR, 208/240/480 V AC, 20 A, 2 Pole, 20 A, Panel Mounting, 32 to 112 deg F, 10 to 90% Non-Condensing Humidity, Black, 5-1/2 in L x 1-5/8 in W Dimensions

The CX panels four types of available CXR relays. Each relay is individually board-mounted and can be installed in any combination in the panel. Relays are offered in a variety of types and ratings to meet any project requirements. Types include electrically-held normally open (N/O), electrically-held normally closed (N/C) and latching.

Product Details

NX Lighting Controls Lighting Control Relay, Latching Electrically Held Normally Closed Normally Open, Series: CXR, 208/240/480 V AC, 20 A, 2 Pole, 20 A, Panel Mounting, 32 to 112 deg F, 10 to 90% Non-Condensing Humidity, Black, 5-1/2 in L x 1-5/8 in W Dimensions

The CX panels four types of available CXR relays. Each relay is individually board-mounted and can be installed in any combination in the panel. Relays are offered in a variety of types and ratings to meet any project requirements. Types include electrically-held normally open (N/O), electrically-held normally closed (N/C) and latching.

Attributes

Amperage Rating: 20 A
Color: Black
Dimensions: 5-1/2 in L x 1-5/8 in W
Humidity: 10 to 90% Non-Condensing
Load Rating: 20 A
Mounting Type: Panel
Number of Poles: 2
Series: CXR
Temperature Rating: 32 to 112 deg F
Type: Latching Electrically Held Normally Closed Normally Open
Voltage Rating: 208/240/480 V AC

Features

  • Compatible with all model CX panels
  • Relays are individually replaceable
  • Smart relay card self-identifies type automatically to panel
  • Plug-in connector to panel motherboard and a single screw to secure it to the panel enclosure
  • Manual override control button and LED status indication
  • 20 A at 208/240/480 VAC magnetic ballast
