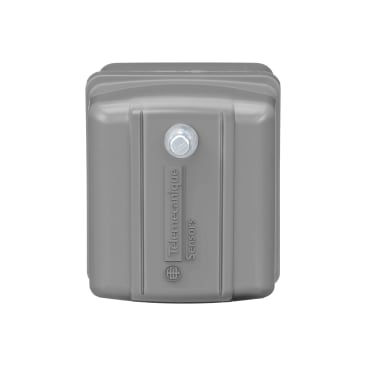

BOSHART 9013GHG2J25 PUMPTROL PRESSURE SWITCH 1/4FPT 60-80PSI
MFR Part #: 9013GHG2J25
SKU #: 1078120
Brand: Boshart Industries
UPC: 777808086528
Telemecanique Pumptrol™ 9013GHG2J25 Pressure Switch, 40 to 170 psi Pressure, 65 to 200 psi Differential, 2NC Contact, Screw Clamp Connection
18 months
Control Electrically Driven Water Pumps and Air Compressors
RoHS Compliant | UL E12158 | CSA LR25490 | CE Marked | NSF ANSI 372 | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Product Details
Attributes
Features
Resources
Telemecanique Pumptrol™ Pressure Switch, Series: 9013GH, 40 to 170 psi Pressure, 65 to 200 psi Differential, 200 psi Maximum, 2NC Contact Configuration, 10 cpm Operating Cycles, -33 to 257 deg F, Screw Clamp Connection, Steel Connection, Nitrile Diaphragm, Noryl Thermoplastic Resin/Polypropylene Housing Material, NEMA 1/IP20 Enclosure, 3.44 in W x 3.88 in D x 5.4 in H Dimensions
Connection Material:
Steel
Connection Type:
Screw Clamp
Contact Configuration:
2NC
Country Of Origin:
Mexico
Diaphragm Material:
Nitrile
Differential:
65 to 200 psi
Dimensions:
3.44 in W x 3.88 in D x 5.4 in H
Enclosure Type:
NEMA 1/IP20
Housing Material:
Noryl Thermoplastic Resin/Polypropylene
Maximum Pressure:
200 psi
Operating Cycles:
10 cpm
Pressure Rating:
40 to 170 psi
Series:
9013GH
Temperature Rating:
-33 to 257 deg F
- Air (-22 to 257 deg F), fresh water (-22 to 257 deg F) controlled fluid
- Regulation between 2 thresholds pressure switch operation
- Adjustable differential scale
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- +/- 3% repeat accuracy
- 575 VAC insulation voltage
- Diaphragm pressure actuator
- 60 to 80 psi pressure
- 4-terminal blocks
- 2 NC, snap action, DPST-DB, form YY contacts type and composition
- 3 knockouts for 1/2 in conduit UL508 cable entry
- 10 AWG clamping capacity electrical connection
- 20 A by cartridge fuse, type gG short circuit protection
- 100000 cycles at 10 cycles/min electrical durability
- 300000 cycles mechanical durability
- Without local display
- General purpose (indoor) environmental conditions
Product Details
Telemecanique Pumptrol™ Pressure Switch, Series: 9013GH, 40 to 170 psi Pressure, 65 to 200 psi Differential, 200 psi Maximum, 2NC Contact Configuration, 10 cpm Operating Cycles, -33 to 257 deg F, Screw Clamp Connection, Steel Connection, Nitrile Diaphragm, Noryl Thermoplastic Resin/Polypropylene Housing Material, NEMA 1/IP20 Enclosure, 3.44 in W x 3.88 in D x 5.4 in H Dimensions
Attributes
Connection Material: Steel
Connection Type: Screw Clamp
Contact Configuration: 2NC
Country Of Origin: Mexico
Diaphragm Material: Nitrile
Differential: 65 to 200 psi
Dimensions: 3.44 in W x 3.88 in D x 5.4 in H
Enclosure Type: NEMA 1/IP20
Housing Material: Noryl Thermoplastic Resin/Polypropylene
Maximum Pressure: 200 psi
Operating Cycles: 10 cpm
Pressure Rating: 40 to 170 psi
Series: 9013GH
Temperature Rating: -33 to 257 deg F
Features
- Air (-22 to 257 deg F), fresh water (-22 to 257 deg F) controlled fluid
- Regulation between 2 thresholds pressure switch operation
- Adjustable differential scale
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- +/- 3% repeat accuracy
- 575 VAC insulation voltage
- Diaphragm pressure actuator
- 60 to 80 psi pressure
- 4-terminal blocks
- 2 NC, snap action, DPST-DB, form YY contacts type and composition
- 3 knockouts for 1/2 in conduit UL508 cable entry
- 10 AWG clamping capacity electrical connection
- 20 A by cartridge fuse, type gG short circuit protection
- 100000 cycles at 10 cycles/min electrical durability
- 300000 cycles mechanical durability
- Without local display
- General purpose (indoor) environmental conditions
