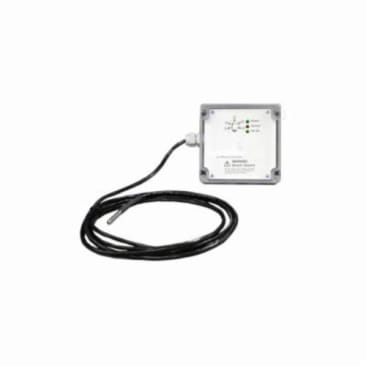

AMAGENCIES EC-TS Image 1

AMAGENCIES EC-TS PENTAIR ADJSTBL THERMOSTAT

MFR Part #: EC-TS
SKU #: 1194351
Brand: nVent | Raychem®
UPC: 715629007278
RAYCHEM EC-TS Electronic Thermostat, 4.8 in H Outside x 4.72 in OAW, 30 A
10 Years
A 25-ft Adjustable Thermistor
For ordinary area and outdoor use
cULus Listed

RAYCHEM, EC-TS, Thermostat, Electronic, 4.72 in Outside Width, 4.8 in Outside Height, 30 A, Electronic Controller Thermostat, Polycarbonate

The Raychem EC-TS electronic thermostat is an ambient, pipe or slab sensing thermostat that is ideal for pipe freeze protection, flow maintenance, freezer frost heave, floor heating and snow melting applications. The EC-TS can be used to control a single heat-tracing -circuit or as a pilot control of a contactor switching multiple heat tracing circuits. The temperature set point can be visually checked through the clear lid, as can the LED indicators for alarm, power and heating cable status. The stainless steel temperature sensor makes it an ideal thermostat for applications that require an embedded sensor.

Product Details

RAYCHEM, EC-TS, Thermostat, Electronic, 4.72 in Outside Width, 4.8 in Outside Height, 30 A, Electronic Controller Thermostat, Polycarbonate

The Raychem EC-TS electronic thermostat is an ambient, pipe or slab sensing thermostat that is ideal for pipe freeze protection, flow maintenance, freezer frost heave, floor heating and snow melting applications. The EC-TS can be used to control a single heat-tracing -circuit or as a pilot control of a contactor switching multiple heat tracing circuits. The temperature set point can be visually checked through the clear lid, as can the LED indicators for alarm, power and heating cable status. The stainless steel temperature sensor makes it an ideal thermostat for applications that require an embedded sensor.

Attributes

Accuracy+/-3 deg F
Amperage Rating30 A
ColorGray
Country Of OriginUS
Dimensions4.08 in H x 4.72 in W x 2 in D
Display TypeLED Indicator
Frequency Rating50 to 60 Hz
Humidity Rating0 to 90% Non-Condensing
MaterialPolycarbonate
Mounting TypeWall
Outside Height4.8 in
Outside Width4.72 in
Sensing Element10 kOhm NTC Thermistor
Switch TypeSPST
Temperature Rating30 to 110 deg F
Thermostat TypeElectronic Controller
TypeElectronic
Voltage Rating120-277 V

Features

  • 100 to 277 VAC voltage rating
  • Stainless steel temperature sensor
  • Reliable during long life
  • Maintenance free
  • 50/60 Hz frequency rating
  • Wall mounting
  • 0 to 90% noncondensing relative humidity
  • -40 to 60 deg C ambient temperature
  • NEMA 4X protection
  • Simple and fast to install and operate
  • Temperature set point can be viewed through the clear lid, as can the led indicators for alarm, power and heating cable status
  • Energy saving
