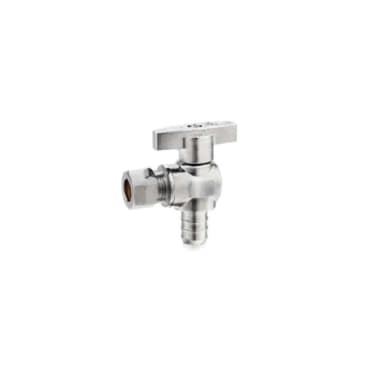

BMI 09639 Image 1

BMI 09639 1/2 PEX X 3/8OD CP/90O /1/4TURN CUPC L.F.

MFR Part #: 09639
SKU #: 1112784
Brand: BMI®
UPC: 777701096396
BMI® 09639 Angle Quarter Turn Ball Valve, 1/2 x 3/8 in Nominal, PEX x Compression End Style, Brass Body, PTFE Seat, EPDM O-Ring, ABS Handle Softgoods
For both plumbing and hydronic heating application
ASME A112.18.1 | ANSI/NSF 61 | ANSI/NSF 372 | ANSI/NSF 14 | CSA B125.1-11 | IAPMO (cUPC) Certified

BMI® Ball Valve, Angle Quarter Turn, 1/2 x 3/8 in Nominal, PEX x Compression End Style, Brass Ball, Brass Body, C46500 Lead-Free Brass Bonnet/Stem, 304 Stainless Steel Screw, H65 Brass Compression Ring Trim, PTFE Seat, EPDM O-Ring, ABS Handle Softgoods, Polished Chrome

Product Details

BMI® Ball Valve, Angle Quarter Turn, 1/2 x 3/8 in Nominal, PEX x Compression End Style, Brass Ball, Brass Body, C46500 Lead-Free Brass Bonnet/Stem, 304 Stainless Steel Screw, H65 Brass Compression Ring Trim, PTFE Seat, EPDM O-Ring, ABS Handle Softgoods, Polished Chrome

Attributes

Ball Material: Brass
Body Material: Brass
Connection Type: PEX x Compression
Finish/Color: Polished Chrome
Fitting/Connector Type: PEX x Compression
Nominal Size: 1/2 x 3/8 in
Softgoods Material: PTFE Seat, EPDM O-Ring, ABS Handle
Trim Material: C46500 Lead-Free Brass Bonnet/Stem, 304 Stainless Steel Screw, H65 Brass Compression Ring

Features

  • Quarter turn open and shut
  • Self-lubricating seats
  • Double O-ring for more safety
