BMI 13104 1/2 IPS BALL VALVE 600 WOG
MFR Part #: 13104
SKU #: 1244445
Brand: BMI®
UPC: 777701131042

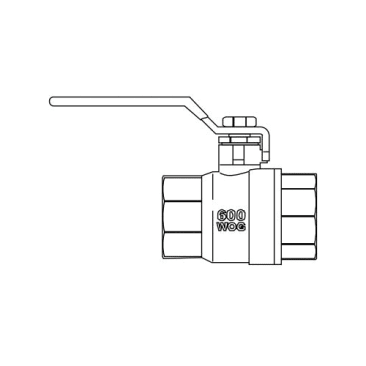

BMI® 13104 Ball Valve, 1/2 in, IPS, Brass, 600 psi
ANSI-372 | ANSI-61 | cCSAus Certified | cULcs Listed | cUPC Certified | FM 1140 | IGC-157 | NSF Certified | NSF Certified
Product Details
Attributes
Resources
BMI® Ball Valve, 1/2 in Nominal, IPS Connection, 600 psi, 2.24 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Steel Handle, 304 Stainless Steel Ball, Lead-Free, -20 to 300 deg F, Domestic/Import: Domestic
Ball Material:
304 Stainless Steel
Body Material:
Brass
Connection Type:
IPS
Domestic/Import:
Domestic
Handle Material:
Steel
Inlet to Outlet Length:
2.24 in
Lead-Free/Contains Lead:
Lead-Free
Nominal Size:
1/2 in
Packing Material:
PTFE
Pressure Rating:
600 psi
Seal Material:
NBR
Seat Material:
PTFE
Stem Material:
Brass
Temperature Rating:
-20 to 300 deg F
Top to Inlet Center:
1.81 in
Product Details
BMI® Ball Valve, 1/2 in Nominal, IPS Connection, 600 psi, 2.24 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Steel Handle, 304 Stainless Steel Ball, Lead-Free, -20 to 300 deg F, Domestic/Import: Domestic
Attributes
Ball Material: 304 Stainless Steel
Body Material: Brass
Connection Type: IPS
Domestic/Import: Domestic
Handle Material: Steel
Inlet to Outlet Length: 2.24 in
Lead-Free/Contains Lead: Lead-Free
Nominal Size: 1/2 in
Packing Material: PTFE
Pressure Rating: 600 psi
Seal Material: NBR
Seat Material: PTFE
Stem Material: Brass
Temperature Rating: -20 to 300 deg F
Top to Inlet Center: 1.81 in
