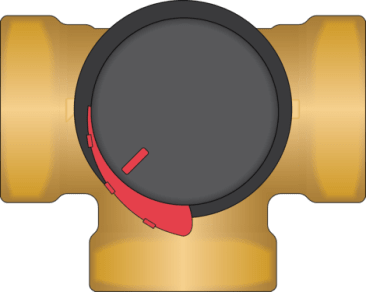

HEATLINK 63539 Image 1

HEATLINK 63539 1-1/4 3-WAY FIP MIXING/DIVERTER VALVE

MFR Part #: 63539
SKU #: 1172446
Brand: HeatLink®
UPC: 62799801272
HeatLink® 63539 3-Way Mixing/Diverting Valve, 1-1/4 in Nominal, FNPT End Style, 145 psi Pressure, DRZ Brass Body, Import

HeatLink® Mixing/Diverting Valve, 3-Way, Series: 63500, 1-1/4 in Nominal, FNPT, 145 psi, 230 deg F, Media: Water, DRZ Brass Body, EPDM Softgoods, 3.7 in L, Import

This unit mixes high temperature boiler water with heating return water to create a supply water temperature. It has the option of manual operation, or it can be fitted with a Mixing Valve Motor for 1 to 2 in FNPT Valves 3-Point Floating (#58131) or Mixing Valve Motor for 1 to 2 in FNPT Valves DDC (#58132) for fully automatic operation.

Product Details

HeatLink® Mixing/Diverting Valve, 3-Way, Series: 63500, 1-1/4 in Nominal, FNPT, 145 psi, 230 deg F, Media: Water, DRZ Brass Body, EPDM Softgoods, 3.7 in L, Import

This unit mixes high temperature boiler water with heating return water to create a supply water temperature. It has the option of manual operation, or it can be fitted with a Mixing Valve Motor for 1 to 2 in FNPT Valves 3-Point Floating (#58131) or Mixing Valve Motor for 1 to 2 in FNPT Valves DDC (#58132) for fully automatic operation.

Attributes

Country Of Origin: Sweden
Temperature Rating: 230 deg F
Body Material: DRZ Brass
Dimensions: 3.7 in L
Domestic/Import: Import
End Style: FNPT
Media: Water
Nominal Size: 1-1/4 in
Pressure Rating: 145 psi
Series: 63500
Softgoods Material: EPDM
Type: 3-Way

Features

  • EPDM O-ring

Resources

Specification Sheet
