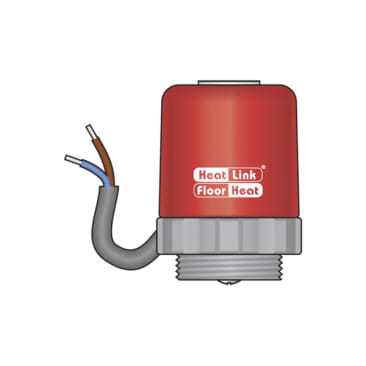

HEATLINK 56202 Image 1

HEATLINK 56202 MULTI-PORT MANIFOLD ZONE DRIVE ACTUATOR WITH LED

MFR Part #: 56202
SKU #: 1027766
Brand: HeatLink®
UPC: 62799800183
HeatLink® 56202 Normally Closed Actuator With LED Indicator, 1-1/2 in L x 2-3/16 in D Actuator, Import
CE Certified

HeatLink® Actuator, Normally Closed, Series: 56200, 1-1/2 in L x 2-3/16 in D Actuator, 2 VA, 24 VAC Supply, 1 m Cable, 23 to 138 deg F, For Use With: TwistSeal® Multiport Manifold, Import

These actuators allow for additional room temperature control in conjunction with a room thermostat by mounting on a 78302 or 78303 TwistSeal™ Multiport Manifold module. Includes a heat demand LED indicator.

Product Details

HeatLink® Actuator, Normally Closed, Series: 56200, 1-1/2 in L x 2-3/16 in D Actuator, 2 VA, 24 VAC Supply, 1 m Cable, 23 to 138 deg F, For Use With: TwistSeal® Multiport Manifold, Import

These actuators allow for additional room temperature control in conjunction with a room thermostat by mounting on a 78302 or 78303 TwistSeal™ Multiport Manifold module. Includes a heat demand LED indicator.

Attributes

Actuator Size: 1-1/2 in L x 2-3/16 in D
Country Of Origin: Germany
Domestic/Import: Import
Electrical Connections: 1 m Cable
Power Consumption: 2 VA
Power Supply: 24 VAC
Series: 56200
Suitable For Use With: TwistSeal® Multiport Manifold
Temperature Rating: 23 to 138 deg F
Type: Normally Closed

Resources

Specification Sheet
