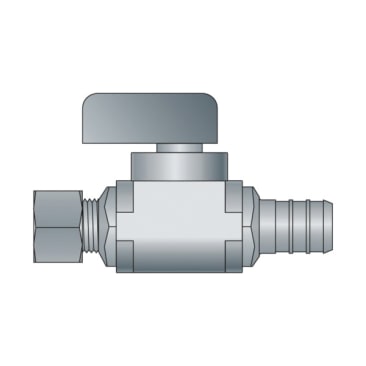

HEATLINK 23505NL 1/2 X 3/8 PEX X COMP BRASS PLATED NO LEAD BALL VALVE
MFR Part #: 23505NL
SKU #: 1079323
Brand: HeatLink®
UPC: 62799800905
HeatLink® 23505NL Straight Ball Valve, 1/2 x 3/8 in Nominal, PEX x OD Compression End Style, Brass Body, Import
ANSI/NSF 61 | ANSI/NSF 372 | ASME A112.18.1/CSA B125.1 | ASTM F1807 | ASTM F877 | CSA Certified | IAPMO Listed | UPC Listed | UNS C69300 Eco Brass Body
Product Details
Attributes
Features
Resources
HeatLink® Ball Valve, Lead Free Straight, 1/2 x 3/8 in Nominal, PEX x OD Compression, 100 psi, 180 deg F, 2-1/2 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, Nickel Plated, Import
Connection Type:PEX x Compression, PEX x OD Compression
Country Of Origin:Canada
Nominal Size:1/2 x 3/8 in
Operator Type:Lever Handle
Body Material:Brass
Domestic/Import:Import
Finish/Color:Nickel Plated
Inlet to Outlet Length:2-1/2 in
Pressure Rating:100 psi
Temperature Rating:180 deg F
Top to Inlet Center:1.2 in
Type:Straight
- No lead brass (C69300-ecobrass) 1/2 in PEX insert x 3/8 in OD compression, nickel plated straight ball valve
- Stainless steel press sleeves sold separately
Product Details
HeatLink® Ball Valve, Lead Free Straight, 1/2 x 3/8 in Nominal, PEX x OD Compression, 100 psi, 180 deg F, 2-1/2 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, Nickel Plated, Import
Attributes
Connection Type: PEX x Compression, PEX x OD Compression
Country Of Origin: Canada
Nominal Size: 1/2 x 3/8 in
Operator Type: Lever Handle
Body Material: Brass
Domestic/Import: Import
Finish/Color: Nickel Plated
Inlet to Outlet Length: 2-1/2 in
Pressure Rating: 100 psi
Temperature Rating: 180 deg F
Top to Inlet Center: 1.2 in
Type: Straight
Features
- No lead brass (C69300-ecobrass) 1/2 in PEX insert x 3/8 in OD compression, nickel plated straight ball valve
- Stainless steel press sleeves sold separately
