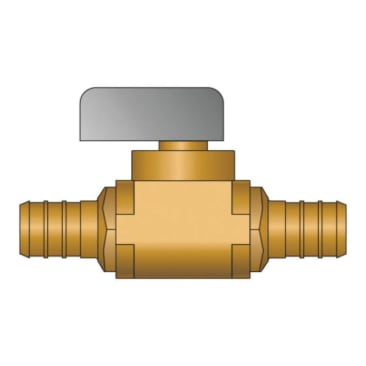

HEATLINK 23705NL 1/2 PEX NO LEAD BALL VALVE
MFR Part #: 23705
SKU #: 1079272
Brand: HeatLink®
UPC: 62799800907
HeatLink® 23705 Straight Ball Valve, 1/2 in, PEX, Brass, 100 psi
ANSI/NSF 61, 372 Specified | ASME A112.18.1 Specified | CSA B125.1 Certified | IAPMO Certified | UPC Listed
Product Details
Attributes
Resources
HeatLink® Straight Ball Valve, 1/2 in Nominal, PEX Connection, 100 psi, 2.8 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, 3 Cv Flow Coefficient (Cv), Material Standard: ASTM F1807, ASTM F877, Brass Body, Lead-Free, 180 deg F, 0.35 in ID
Connection Type:
PEX
Country Of Origin:
Canada
Nominal Size:
1/2 in
Operator Type:
Lever Handle
Body Material:
Brass
Dimensions:
0.35 in ID
Domestic/Import:
Import
End Style:
PEX
Flow Coefficient (Cv):
3 Cv
Inlet to Outlet Length:
2.8 in
Lead-Free/Contains Lead:
Lead-Free
Material Standard:
ASTM F1807, ASTM F877
Pressure Rating:
100 psi
Series:
23700NL
Temperature Rating:
180 deg F
Top to Inlet Center:
1.2 in
Type:
Straight
Product Details
HeatLink® Straight Ball Valve, 1/2 in Nominal, PEX Connection, 100 psi, 2.8 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, 3 Cv Flow Coefficient (Cv), Material Standard: ASTM F1807, ASTM F877, Brass Body, Lead-Free, 180 deg F, 0.35 in ID
Attributes
Connection Type: PEX
Country Of Origin: Canada
Nominal Size: 1/2 in
Operator Type: Lever Handle
Body Material: Brass
Dimensions: 0.35 in ID
Domestic/Import: Import
End Style: PEX
Flow Coefficient (Cv): 3 Cv
Inlet to Outlet Length: 2.8 in
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM F1807, ASTM F877
Pressure Rating: 100 psi
Series: 23700NL
Temperature Rating: 180 deg F
Top to Inlet Center: 1.2 in
Type: Straight
