ITRON B42R-1-12-916 B42 1IN IN/OUTLET 1/2 X 9/16 ORFC REG

Name: ITRON B42R-1-12-916 B42 1IN IN/OUTLET 1/2 X 9/16 ORFC REG
Brand: Itron
SKU: 1111882
Availability: InStock

MFR Part #: B42R-1-12-916

SKU #: 1111882

Brand: Itron

UPC: 400007203679

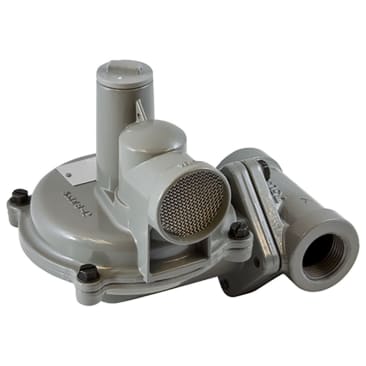

Itron B42 Series B42R-1-12-916 Regulator, 1 in Nominal, 2500 scfh Nominal, Non-Natural Gas Fuel, 10 psig, Iron

For typical domestic and light commercial applications

Product Details
Attributes
Features

Itron Regulator, B42 Series, 1 in Nominal, 1/2 x 9/16 in Orifice, 2500 scfh Nominal Capacity, NPT Connection, Non-Natural Gas Fuel, 10 psig, Iron, -20 to 150 deg F

The B42 is a spring loaded self-operated regulator with internal relief option. The B42 features a molded diaphragm, 6:1 lever ratio and a one inch vent. The benefit is a lighter more compact unit that provides the power, capacity and relief performance of larger regulators.

Product Details

Itron Regulator, B42 Series, 1 in Nominal, 1/2 x 9/16 in Orifice, 2500 scfh Nominal Capacity, NPT Connection, Non-Natural Gas Fuel, 10 psig, Iron, -20 to 150 deg F

The B42 is a spring loaded self-operated regulator with internal relief option. The B42 features a molded diaphragm, 6:1 lever ratio and a one inch vent. The benefit is a lighter more compact unit that provides the power, capacity and relief performance of larger regulators.

Attributes

Connection Type: NPT

Fuel Type: Non-Natural Gas

Material: Iron

Nominal Capacity: 2500 scfh

Nominal Size: 1 in

Pressure Rating: 10 psig

Series: B42 Series

Temperature Rating: -20 to 150 deg F

Orifice Size: 1/2 x 9/16 in

Features

Interchangeable aluminum orifice
12.6 sq-in diaphragm area
Molded deep convolution diaphragm with O-ring seal
Plated steel 6:1 lever
One-piece molded Buna-N valve seat
Delrin® vent valve with Buna-N seat
Spring loaded internal relief valve assembly
1 and 3/4 in threaded vent with stainless steel screen
Fiberglass reinforced polyethylene seal cap with integral relief valve stop
Field interchangeable adjustment spring
