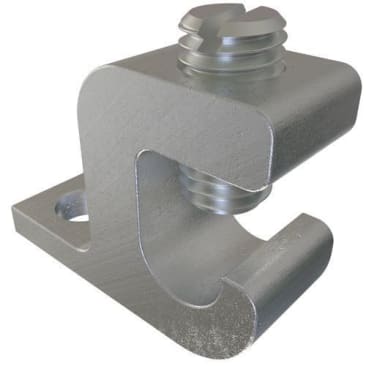

ILSCO GBL-4 #4-14 DUAL RATED LAY-IN GROUND LUG
MFR Part #: GBL-4
SKU #: 1014858
Brand: ILSCO®
UPC: 783669960051
ILSCO® ClearChoice® GBL-4 Type GBL Dual Rated Lay-In Ground Lug, 14 to 4 AWG Aluminum/Copper Conductor, #10 Stud, Aluminum Alloy, Electro-Plated Tin
For use with tap connector/grounding connector
RU Listed | UL 467/File No. E6207
Product Details
Attributes
Features
Resources
ILSCO® ClearChoice® Lay-In Ground Lug, Type GBL Dual Rated, Aluminum/Copper Conductor, 14 to 4 AWG Conductor, #10 Stud, 31/64 in Lug Length, Aluminum Alloy, Electro-Plated Tin, 1-3/32 in L x 25/64 in W x 51/64 in H
Conductor Size:14 to 4 AWG
Conductor Type:Aluminum/Copper
Country Of Origin:US
Dimensions:1-3/32 in L x 25/64 in W x 51/64 in H
Finish:Electro-Plated Tin
Lug Length:31/64 in
Material:Aluminum Alloy
Stud Size:#10
Type:Type GBL Dual Rated
- Manufactured from high strength 6061-T6 aluminum alloy
- Lay-in feature
- Suitable for use with either copper or aluminum conductors
- Provides low contact resistance
- GBL-4 and GBL-4SS are UL 467 listed for grounding and bonding
- GBL-1/0 and GBL-250 are UL 467 recognized for grounding and bonding
- GBL-4SS is supplied with stainless steel screw
- See ILSCO® GBL-4DB for lay-in copper lug suitable for direct burial
- GBL-4SS tested to ASTM B117-09 for operating in a salt spray (fog) environment
- Slot hex
Product Details
ILSCO® ClearChoice® Lay-In Ground Lug, Type GBL Dual Rated, Aluminum/Copper Conductor, 14 to 4 AWG Conductor, #10 Stud, 31/64 in Lug Length, Aluminum Alloy, Electro-Plated Tin, 1-3/32 in L x 25/64 in W x 51/64 in H
Attributes
Conductor Size: 14 to 4 AWG
Conductor Type: Aluminum/Copper
Country Of Origin: US
Dimensions: 1-3/32 in L x 25/64 in W x 51/64 in H
Finish: Electro-Plated Tin
Lug Length: 31/64 in
Material: Aluminum Alloy
Stud Size: #10
Type: Type GBL Dual Rated
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Lay-in feature
- Suitable for use with either copper or aluminum conductors
- Provides low contact resistance
- GBL-4 and GBL-4SS are UL 467 listed for grounding and bonding
- GBL-1/0 and GBL-250 are UL 467 recognized for grounding and bonding
- GBL-4SS is supplied with stainless steel screw
- See ILSCO® GBL-4DB for lay-in copper lug suitable for direct burial
- GBL-4SS tested to ASTM B117-09 for operating in a salt spray (fog) environment
- Slot hex
