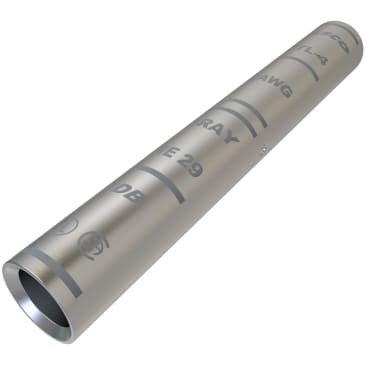

ILSCO CTL-4 COPPER COMPRESSION SLEEVE LONG BARREL #4
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Compression Sleeve, Long Barrel, Series: CTL, Copper Conductor, 4 AWG Conductor, Die Code: I-29, 2-3/8 in Length, Crimp Connector, 600 V AC, 90 deg C, 1-1/4 in L Stripe, Copper, Electro-Plated Tin, Gray, 0.25 in ID x 0.343 in OD
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Long with chamfered barrel entry, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 4 AWG solid alternate conductor size
- 6 to 4 AWG expanded conductor
- Insures maximum cable insertion
Product Details
ILSCO® SureCrimp® Compression Sleeve, Long Barrel, Series: CTL, Copper Conductor, 4 AWG Conductor, Die Code: I-29, 2-3/8 in Length, Crimp Connector, 600 V AC, 90 deg C, 1-1/4 in L Stripe, Copper, Electro-Plated Tin, Gray, 0.25 in ID x 0.343 in OD
Attributes
Features
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Long with chamfered barrel entry, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 4 AWG solid alternate conductor size
- 6 to 4 AWG expanded conductor
- Insures maximum cable insertion
