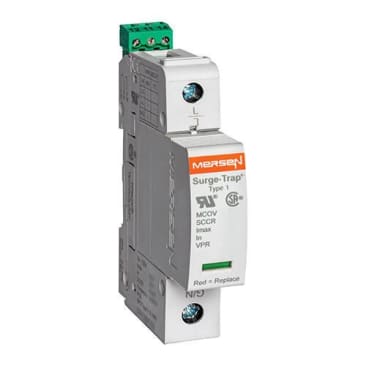

MERSEN STP120P07M 120V 1 POLE DIN RAIL SURGE PROTECT
Product Details
Attributes
Features
Resources
Mersen, STP120P07M, Pluggable AC Surge Protective Device, Type 1, Series: STP, 120 VAC Electrical Rating, 50, 60 Hz Frequency, 1 Pole, 2 Wires, 200 kA Short Circuit, 75 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N, <25 ns Response, Microswitch Indicator, 1 ph, Environmental Conditions: -40 to 85 deg C Operating/Storage, IP20 Enclosure, DIN Rail Mounting, Box Terminal, Polyethelene Terphthalate, 4.19 in L x 0.69 in W x 2.81 in H Dimensions
- Featuring a fail-safe self-protected design, visual indicator and a small footprint
- A remote indicator option provides status to critical control circuitry
- The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices
- Easy installation or retrofit
- Visual indicator
- Small footprint
- No additional overcurrent protection devices required
- Easy to replace modules
Product Details
Mersen, STP120P07M, Pluggable AC Surge Protective Device, Type 1, Series: STP, 120 VAC Electrical Rating, 50, 60 Hz Frequency, 1 Pole, 2 Wires, 200 kA Short Circuit, 75 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-N, <25 ns Response, Microswitch Indicator, 1 ph, Environmental Conditions: -40 to 85 deg C Operating/Storage, IP20 Enclosure, DIN Rail Mounting, Box Terminal, Polyethelene Terphthalate, 4.19 in L x 0.69 in W x 2.81 in H Dimensions
Attributes
Features
- Featuring a fail-safe self-protected design, visual indicator and a small footprint
- A remote indicator option provides status to critical control circuitry
- The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices
- Easy installation or retrofit
- Visual indicator
- Small footprint
- No additional overcurrent protection devices required
- Easy to replace modules
