KVC 100T0050 Image 1
KVC 100T0050 Image 2
content loaded

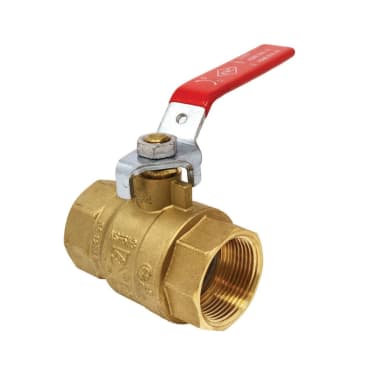

KVC 100T0050 Image 1

KVC 100T0050 1/2IN NPT BRASS BALL VALVE 600WOG

MFR Part #: 100T0050
SKU #: 1114628
Brand: KVC
UPC: 400007366398
KVC 100T Series 100T0050 Ball Valve, 1/2 in, NPT, Brass, 600 psi
ANSI B1.20.1 Specified | cCSAus Certified | cUPC Certified | cULus Listed | FM 1140 Approved | UL 842 (Guide YRBX, MHKZ), UL 125 (Guide YSTD, YRPV), UL 1477 (Guide YQNZ) Listed

KVC Ball Valve, 100T Series, 1/2 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.24 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Lever Handle Operator, 18.55 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Contains Lead, -40 to 300 deg F

Product Details

KVC Ball Valve, 100T Series, 1/2 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Steam, Water Media, 2.24 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Lever Handle Operator, 18.55 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, NBR Seal, PTFE Packing, Ferrum Handle, Stainless Steel Ball, Contains Lead, -40 to 300 deg F

Attributes

Ball Material: Stainless Steel
Body Material: Brass
Connection Type: NPT
Flow Coefficient (Cv): 18.55 Cv
Handle Material: Ferrum
Inlet to Outlet Length: 2.24 in
Lead-Free/Contains Lead: Contains Lead
Media: Gas, Oil, Steam, Water
Nominal Size: 1/2 in
Operator Type: Lever Handle
Packing Material: PTFE
Port Type: Full
Pressure Rating: 600 psi
Seal Material: NBR
Seat Material: PTFE
Series: 100T Series
Stem Material: Brass
Temperature Rating: -40 to 300 deg F
Top to Inlet Center: 1.81 in

Features

  • Blowout-proof stem design
  • Packing nut, O-ring and packing on the stem seal
  • Handle with vinyl grip
  • Zinc-plated ferrum lock nut, washer
  • Brass cap and packing nut

Resources

Specification Sheet
