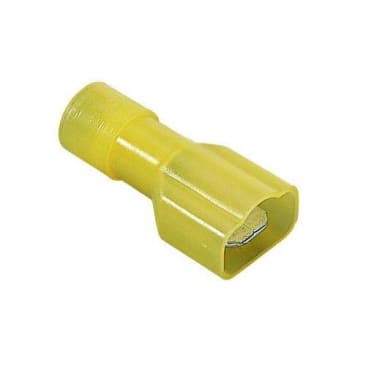

IDEAL 83-9931 Image 1

IDEAL 83-9931 12-10AWG NYLON FULLY INSULATED MAL DISCONNECT (PK25)

MFR Part #: 83-9931
SKU #: 1267650
Brand: IDEAL®
UPC: 783250490776
IDEAL® 83-9931 Fully Insulated Vinyl Male Disconnect Terminal, 12 to 10 AWG Conductor, 0.25 x 0.32 in Tab, Shouldered Barrel, Brass/Nylon, Yellow
RoHS Compliant | CUL Listed

IDEAL® Male Disconnect Terminal, Fully Insulated Vinyl, 12 to 10 AWG Conductor, 0.25 x 0.32 in Tab, Shouldered Barrel, 300 V AC, Specifications: 0.244 in Dia Insulation, Brass/Nylon, Yellow, Tin Plated, 0.984 in L Dimensions

Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Product Details

IDEAL® Male Disconnect Terminal, Fully Insulated Vinyl, 12 to 10 AWG Conductor, 0.25 x 0.32 in Tab, Shouldered Barrel, 300 V AC, Specifications: 0.244 in Dia Insulation, Brass/Nylon, Yellow, Tin Plated, 0.984 in L Dimensions

Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Attributes

Barrel Type: Shouldered
Color: Yellow
Conductor Size: 12 to 10 AWG
Country Of Origin: Taiwan
Dimensions: 0.984 in L
Finish: Tin Plated
Material: Brass/Nylon
Specifications: 0.244 in Dia Insulation
Tab Size: 0.25 x 0.32 in
Type: Fully Insulated Vinyl
Voltage Rating: 300 V AC

Features

  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin-plated brass construction for corrosion resistance
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
