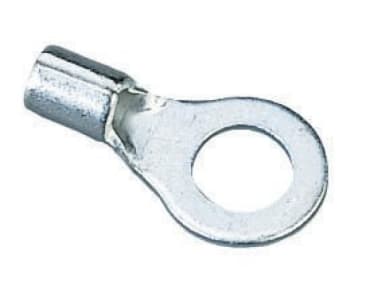

IDEAL 83-0521 Image 1

IDEAL 83-0521 6 AWG NON-INSULATED RING TERMINAL (PK20)

MFR Part #: 83-0521
SKU #: 1294743
Brand: IDEAL®
UPC: 783250489657
IDEAL® 83-0521 1-Hole Non Insulated Bare Ring Terminal
Designed for durability and ease of use
UL Listed|RoHS

IDEAL®, 83-0521, Bare Ring Terminal, 1-Hole Non Insulated, 6 AWG Conductor, 600 VAC, 1/4 in Stud, 0.472 in W Tongue, 1.173 in Overall Length, Beveled/Butted Seam Barrel, 0.413 in L Barrel, 221 deg F, Tin Plated Brass

Butted seam-construction prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction for corrosion resistance. Shouldered barrel insulation quickly positions terminal for proper crimping. Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support. The complete line of IDEAL® crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are colour-coded for easy identification and come in durable plastic packaging for easy storage.

Product Details

IDEAL®, 83-0521, Bare Ring Terminal, 1-Hole Non Insulated, 6 AWG Conductor, 600 VAC, 1/4 in Stud, 0.472 in W Tongue, 1.173 in Overall Length, Beveled/Butted Seam Barrel, 0.413 in L Barrel, 221 deg F, Tin Plated Brass

Butted seam-construction prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction for corrosion resistance. Shouldered barrel insulation quickly positions terminal for proper crimping. Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support. The complete line of IDEAL® crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are colour-coded for easy identification and come in durable plastic packaging for easy storage.

Attributes

Barrel Size0.413 in L
Barrel TypeBeveled/Butted Seam
Conductor Size6 AWG
MaterialTin Plated Brass
Overall Length1.173 in
Stud Size1/4 in
Temperature Rating221 deg F
Tongue Size0.472 in W
Type1-Hole Non Insulated
Voltage Rating600 VAC

Features

  • Tin-plated brass construction for corrosion resistance
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Butted seam-construction prevents splitting under maximum pressure
