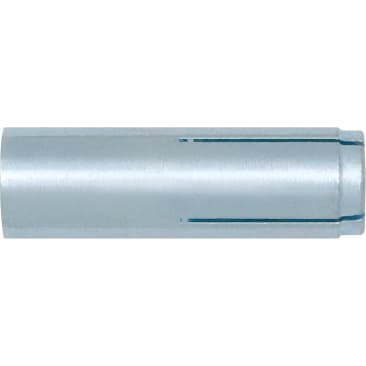

DEWALT 06306-PWR Image 1

DEWALT 06306-PWR 3/8 CARBON STEEL INTERNAL THREAD EXPANSION DROP-IN ANCHOR

MFR Part #: 06306-PWR
SKU #: 1283350
Brand: DeWALT®
UPC: 075352163062
DeWALT® 06306-PWR Non-Flange Drop-In Anchor, 3/8 in, 1008 Carbon Steel, 1/2 in Drill, 1-9/16 in D Min Embedment
For suspending conduit, cable trays and strut
UL Listed | FM 3059197

DeWALT®, 06306-PWR, Non-Flange Drop-In Anchor, 3/8 in Bolt/Rod, 3/8-16 Thread, 1008 Carbon Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, 5/8 in Thread Length, UNC Thread, 5/8 in Overall Length, 1145 lb Shear Strength, 4950 lb Tensile Strength, Zinc Plated

The Steel Dropin™ is an all-steel, machine bolt Anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, hard stone and solid block base materials. A coil thread version for forming applications is also available.

Product Details

DeWALT®, 06306-PWR, Non-Flange Drop-In Anchor, 3/8 in Bolt/Rod, 3/8-16 Thread, 1008 Carbon Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, 5/8 in Thread Length, UNC Thread, 5/8 in Overall Length, 1145 lb Shear Strength, 4950 lb Tensile Strength, Zinc Plated

The Steel Dropin™ is an all-steel, machine bolt Anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, hard stone and solid block base materials. A coil thread version for forming applications is also available.

Attributes

Bolt/Rod Size: 3/8 in
Country Of Origin: China
Drill Size: 1/2 in
Material: 1008 Carbon Steel
Shear Strength: 1145 lb
Tensile Strength: 4950 lb
Finish: Zinc Plated
Minimum Embedment Depth: 1-9/16 in
Overall Length: 5/8 in
Thread Length: 5/8 in
Thread Size: 3/8-16
Thread Type: UNC
Type: Non-Flange

Features

  • Internally threaded anchor for easy bolt removability and service work
  • Smooth wall drop-in can be installed flush mounted or below the base material surface
  • Coil thread version accepts coil rod and typically used for concrete formwork applications
  • Flanged (lipped) version installs flush for easy inspection and standard embedment
  • Ultimate load capacity - 2180 lb tensile strength when embedded in 2000 psi, 4180 lb tensile strength when embedded in 4000 psi and 4950 lb tensile strength when embedded in 6000 psi normal weight concrete
