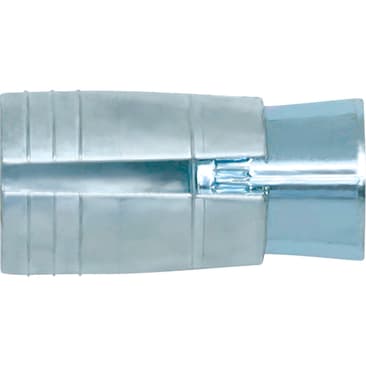

DEWALT 09330-PWR HOLLOW-SET DROPIN 5/16IN
Product Details
Attributes
Features
Resources
DeWALT®, 09330-PWR, Expansion Anchor, Drop-In Flange Internally Threaded, Series: Hollow-Set™ Dropin™, 5/16 in Bolt/Rod, 5/16-18 Thread, 316 Stainless Steel, 5/8 in Drill, 1 in Minimum Embedment Depth, 5/8 in Thread Length, UNC Thread, 1-5/16 in Overall Length, 1980 lb Shear Strength, 2200 lb Tensile Strength
The Hollow-Set Dropin™ Anchor is designed for anchoring in hollow base materials such as hollow concrete block and precast hollow core plank. It can also be used in solid base materials. Concrete masonry blocks often have a maximum outer wall thickness of 1-1/2 in. During the drilling process, spalling on the back side of the wall often decreases the wall thickness, leaving only 1 in or less for anchoring. The Hollow-Set Dropin™ is designed to perform in this environment, where most conventional style Anchors will not function properly.
- Internally threaded anchor for easy bolt removability and service work
- Versatile setting options allows for hollow or solid base materials
- Unique expansion design allows for anchoring in thin walled base materials
- Ultimate load capacity: 1120 lb tensile strength when embedded in 2000 psi, 1680 lb tensile strength when embedded in 4000 psi and 2200 lb tensile strength when embedded in 6000 psi normal-weight concrete
- Normal weight concrete, precast hollow core plank, hollow or grout filled concrete masonry (CMU) and brick masonry are applicable materia
Product Details
DeWALT®, 09330-PWR, Expansion Anchor, Drop-In Flange Internally Threaded, Series: Hollow-Set™ Dropin™, 5/16 in Bolt/Rod, 5/16-18 Thread, 316 Stainless Steel, 5/8 in Drill, 1 in Minimum Embedment Depth, 5/8 in Thread Length, UNC Thread, 1-5/16 in Overall Length, 1980 lb Shear Strength, 2200 lb Tensile Strength
The Hollow-Set Dropin™ Anchor is designed for anchoring in hollow base materials such as hollow concrete block and precast hollow core plank. It can also be used in solid base materials. Concrete masonry blocks often have a maximum outer wall thickness of 1-1/2 in. During the drilling process, spalling on the back side of the wall often decreases the wall thickness, leaving only 1 in or less for anchoring. The Hollow-Set Dropin™ is designed to perform in this environment, where most conventional style Anchors will not function properly.
Attributes
Features
- Internally threaded anchor for easy bolt removability and service work
- Versatile setting options allows for hollow or solid base materials
- Unique expansion design allows for anchoring in thin walled base materials
- Ultimate load capacity: 1120 lb tensile strength when embedded in 2000 psi, 1680 lb tensile strength when embedded in 4000 psi and 2200 lb tensile strength when embedded in 6000 psi normal-weight concrete
- Normal weight concrete, precast hollow core plank, hollow or grout filled concrete masonry (CMU) and brick masonry are applicable materia
