3M 7000133222 Image 1

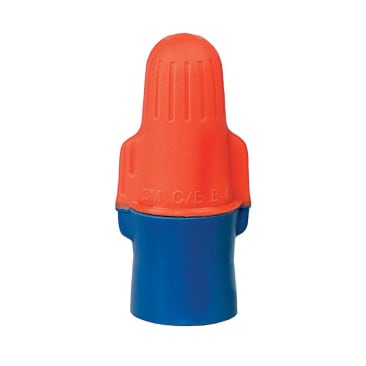

3M 7000133222 ORANGE/BLUE WIRE CNCTR 500PK 2-22 O/B-JUG

MFR Part #: 7000133222
SKU #: 1207270
Brand: 3M™
UPC: 7000133222
3M™ 7000133222 Flame Retardant Connector, Winged Shell, Live Action/Square Wire Spring, 22 to 12 AWG Wire Aluminum/Copper Wire, Spring Steel
For electrically connect two or more conductor ends in a pigtail application and insulate the connection
RoHS Compliant | CSA C22.2 188-MI983 File No. LR15503 | CE Certified | IEC Certified | UL 486C File No. E23438

3M™, 7000133222, Connector, Flame Retardant, Winged Shell Style, Live Action/Square Wire Spring, Aluminum/Copper Wire, 22 to 12 AWG Wire, 600 V AC, 221 deg F, Spring Steel, Blue/Orange

3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Product Details

3M™, 7000133222, Connector, Flame Retardant, Winged Shell Style, Live Action/Square Wire Spring, Aluminum/Copper Wire, 22 to 12 AWG Wire, 600 V AC, 221 deg F, Spring Steel, Blue/Orange

3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Attributes

Country Of Origin: US
Color: Blue/Orange
Material: Spring Steel
Shell Style: Winged
Spring Type: Live Action/Square Wire
Temperature Rating: 221 deg F
Type: Flame-Retardant
Voltage Rating: 600 V AC
Wire Size: 22 to 12 AWG
Wire Type: Aluminum/Copper

Features

  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
