3M 7000133675 YELL RING 12-10 #8 VINYL INSUL 25PK RV10-8Q
Product Details
Attributes
Features
Resources

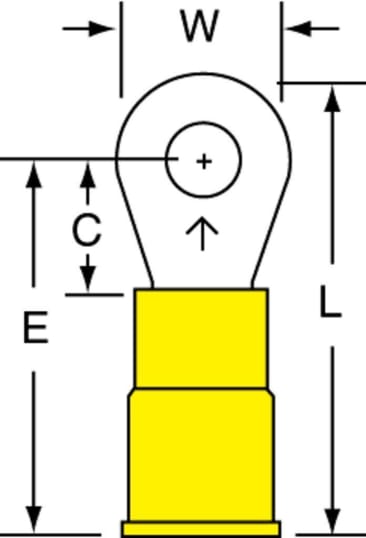

3M™, 7000133675, Terminal, Tin Plated Copper Conductor, 12 to 10 AWG Conductor, 8 in Stud, 1.03 in Length, Butted Barrel, 0.135 in ID x 0.25 in L Barrel, 1000 VAC, -40 to 221 deg F, Yellow, 0.38 in W x 0.04 in THK Dimensions
3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- 0.29 in clearance
- 0.25 in maximum insulation outer diameter
- Standard vinyl insulation
- Crimp connection
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
- 600V-rated for building wire and 1000v for signs, fixtures or luminaires
Product Details
3M™, 7000133675, Terminal, Tin Plated Copper Conductor, 12 to 10 AWG Conductor, 8 in Stud, 1.03 in Length, Butted Barrel, 0.135 in ID x 0.25 in L Barrel, 1000 VAC, -40 to 221 deg F, Yellow, 0.38 in W x 0.04 in THK Dimensions
3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Attributes
Features
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- 0.29 in clearance
- 0.25 in maximum insulation outer diameter
- Standard vinyl insulation
- Crimp connection
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Standard-style ring tongue fits around the stud
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
- 600V-rated for building wire and 1000v for signs, fixtures or luminaires
