VICTAULIC V00678YBFF 3/4 78Y YBFBF FNXFN UNION
MFR Part #: V00678YBFF
SKU #: 1269961
Brand: Victaulic®
UPC: 400051279392

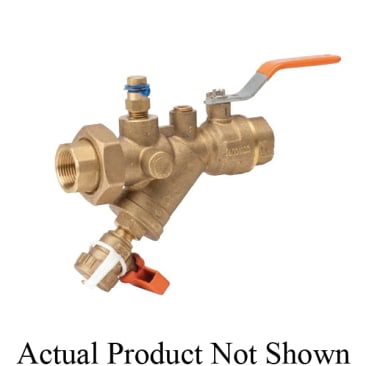

Victaulic® Koil-Kit™ V00678YBFF 78Y Wye Strainer/Ball Valve Combination, 3/4 in Nominal, FNPT x FNPT Union End Style, 400 psi Pressure, DZR Brass Alloy Body, Full Port, Domestic
1 year Limited
For hot and cold water applications, including treated and untreated water systems
TSSA Certified
Product Details
Attributes
Features
Resources
Victaulic® Koil-Kit™ Wye Strainer/Ball Valve Combination, Series: 78Y, 3/4 in Nominal, FNPT x FNPT Union End Style, 400 psi Pressure, -4 to 230 deg F, Full Port, Media: Water, Handle Actuator, DZR Brass Alloy Body, Polished Brass Ball, Brass Trim, EPDM Softgoods, 1.05 in OD x 6.1 in L Dimensions, Domestic
Actuator Type:Handle
Ball Material:Polished Brass
Body Material:DZR Brass Alloy
Connection Type:FNPT x FNPT
Dimensions:1.05 in OD x 6.1 in L
Domestic/Import:Domestic
End Style:FNPT x FNPT Union
Handle Material:Steel
Material:Brass
Media:Water
Nominal Size:3/4 in
Operator Type:Lever
Port Type:Full
Pressure Rating:400 psi
Seal Material:EPDM
Seat Material:PTFE
Series:78Y, 78Y Series
Softgoods Material:EPDM
Stem Material:Brass
Temperature Rating:-4 to 230 deg F
Trim Material:Brass
- Brass stem, EPDM O-ring/seal
Product Details
Victaulic® Koil-Kit™ Wye Strainer/Ball Valve Combination, Series: 78Y, 3/4 in Nominal, FNPT x FNPT Union End Style, 400 psi Pressure, -4 to 230 deg F, Full Port, Media: Water, Handle Actuator, DZR Brass Alloy Body, Polished Brass Ball, Brass Trim, EPDM Softgoods, 1.05 in OD x 6.1 in L Dimensions, Domestic
Attributes
Actuator Type: Handle
Ball Material: Polished Brass
Body Material: DZR Brass Alloy
Connection Type: FNPT x FNPT
Dimensions: 1.05 in OD x 6.1 in L
Domestic/Import: Domestic
End Style: FNPT x FNPT Union
Handle Material: Steel
Material: Brass
Media: Water
Nominal Size: 3/4 in
Operator Type: Lever
Port Type: Full
Pressure Rating: 400 psi
Seal Material: EPDM
Seat Material: PTFE
Series: 78Y, 78Y Series
Softgoods Material: EPDM
Stem Material: Brass
Temperature Rating: -4 to 230 deg F
Trim Material: Brass
Features
- Brass stem, EPDM O-ring/seal
