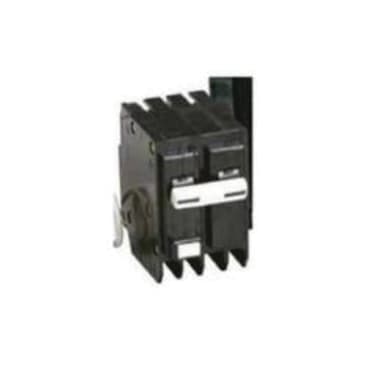

CUTLER HAMMER BR240 Image 4

CUTLER HAMMER BR240 PUSH-IN 40 AMP 2 POLE BREAKER

MFR Part #: BR240
SKU #: 0711090
Brand: EATON
UPC: 786676363006
Cutler-Hammer BR240 Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 -Pole
CSA Certified | NEMA Standards | Federal Specification WC375 | UL 489

Cutler-Hammer Circuit Breaker, 40 A, 120/240 VAC, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, 14 to 4 AWG Wire, Plug-On Mounting, 60 to 75 deg C, 2 in Width, 3 in Length, 3 in Height

A branch feeder type arc fault circuit interrupter is a device intended to mitigate high current arcing faults in the complete circuit, including connected cords. High current arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults. The branch feeder type AFCI is required in the 1999 and 2002 National Electrical Code. The Combination type AFCI is required in the 2005, 2008 and 2011 National Electrical Code.

Product Details

Cutler-Hammer Circuit Breaker, 40 A, 120/240 VAC, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, 14 to 4 AWG Wire, Plug-On Mounting, 60 to 75 deg C, 2 in Width, 3 in Length, 3 in Height

A branch feeder type arc fault circuit interrupter is a device intended to mitigate high current arcing faults in the complete circuit, including connected cords. High current arcing faults can occur from line to neutral or line to ground. These arcing faults are in parallel with the load and produce the most energy of all arcing faults. The branch feeder type AFCI is required in the 1999 and 2002 National Electrical Code. The Combination type AFCI is required in the 2005, 2008 and 2011 National Electrical Code.

Attributes

Amperage Rating: 40 A
Country Of Origin: Dominican Republic
Height: 3 in
Interrupt Rating: 10 kA
Length: 3 in
Mounting Type: Plug-On
Number of Poles: 2
Phase: 1 ph
Temperature Rating: 60 to 75 deg C
Voltage Rating: 120/240 VAC
Width: 2 in
Wire Size: 14 to 4 AWG

Features

  • Common trip requires two 1 in spaces
  • All BR circuit breakers have rejection tab feature
  • Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip-free handle design
  • For two-pole circuit breakers carry listing for HACR application
