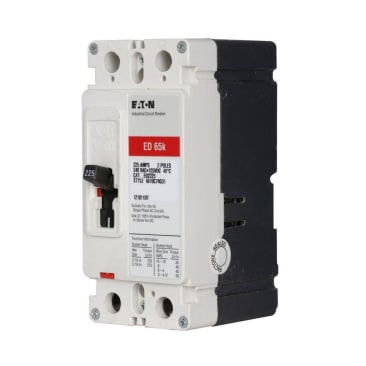

HEYWIRE ED2125L 2POLE 125AMP F FRAME BRKR CTLR HMR

MFR Part #: ED2125L
SKU #: 1193312
Brand: EATON
UPC: 78667945424
EATON ED2125L C Series Type ED Molded Case Circuit Breaker, 240 VAC/125 VDC, 125 A, 65 kAIC at 240 VAC Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic Trip
1 year
Panelboard, Switchboard, Motor Control Center and Busway Applications
AS 2184 | BS 4752 | CSA C22.2/5 | Federal Specification WC-375B | HACR Rated | IEC 60947-2 | SABS 156 | SEV 157-1 | UL 489 | VDE 0660 | UL Listed

EATON Molded Case Circuit Breaker, Type ED, Series: C Series, 240 VAC/125 VDC, 125 A, 50/60 Hz, 65 kAIC at 240 VAC Interrupt, F Frame, Fixed Thermal/Fixed Magnetic Trip, 2 Pole, Handle Actuator, Line/Load, 40 deg C, 3.38 x 2.75 x 2.75 in

Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker.  The Series C circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A.

Product Details

EATON Molded Case Circuit Breaker, Type ED, Series: C Series, 240 VAC/125 VDC, 125 A, 50/60 Hz, 65 kAIC at 240 VAC Interrupt, F Frame, Fixed Thermal/Fixed Magnetic Trip, 2 Pole, Handle Actuator, Line/Load, 40 deg C, 3.38 x 2.75 x 2.75 in

Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker.  The Series C circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A.

Attributes

Country Of Origin: Dominican Republic
Mounting Type: Molded Case
Actuator Type: Handle
Connection Type: Line/Load, Feed-Thru
Dimensions: 3.38 x 2.75 x 2.75 in
Frame: F
Frame Type: F
Frequency Rating: 50/60 Hz
Height: 2-3/4 in
Interrupt Rating: 65 kA, 65 kAIC at 240 VAC
Length: 3.38 in
Phase: 1 ph
Series: C Series
Temperature Rating: 40 deg C
Terminal Type: Line and Load Side Lug
Trip Type: Fixed Thermal/Fixed Magnetic, Fixed Thermal, Magnetic
Type: Type ED
Voltage Rating: 240 VAC/125 VDC
Width: 2-3/4 in

Features

  • Patented contact design features high speed "blow-open" action, resulting in superior performance
  • Suitable for reverse feed applications
  • 65 kA at 240 VAC interrupt rating

Resources

Catalog
Instruction/Installation Manual
Owners/User Manual
Specification Sheet
