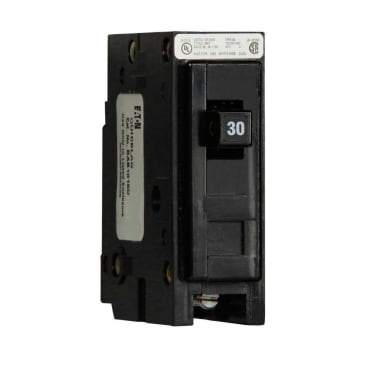

CUTLER HAMMER BAB1030 Image 1

CUTLER HAMMER BAB1030 1 POLE 30 AMP BOLT-IN BREAKER

MFR Part #: BAB1030
SKU #: 0711453
Brand: EATON
UPC: 786679301302
EATON QuickLag® BAB1030 Type BAB Molded Case Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip
Datacenters, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities Applications
CSA Certified | Federal Specification W-C-375B | HACR Rated | UL 489

EATON QuickLag® Miniature Circuit Breaker, Type BAB Molded Case, 120/240 VAC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3.8 in L x 1.1 in W x 4.8 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Product Details

EATON QuickLag® Miniature Circuit Breaker, Type BAB Molded Case, 120/240 VAC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3.8 in L x 1.1 in W x 4.8 in H Dimensions

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.

Attributes

Amperage Rating30 A
Country Of OriginDominican Republic
Number of Poles1
Connection TypeBolt-On, Steel Box Lug
Dimensions3.8 in L x 1.1 in W x 4.8 in H
Frame TypeBAB
Frequency Rating50/60 Hz
Height5 in
Interrupt Rating10 kA
Length4 in
Mounting TypeBolted-On
Phase1 ph, 1
Temperature Rating40 deg C
Terminal TypeExtended Tang Line
Trip TypeNon-Interchangeable Thermal Magnetic, Non-Interchangeable, Thermal Magnetic
TypeType BAB Molded Case
Voltage Rating120/240 VAC
Width1 in
Wire Size14 to 4 AWG

Features

  • Flexible power feed connection
  • Field mountable accessories make installation and on-site custom configuration easy
  • High intensity discharge
